HM70N75D - N-Channel Trench Power MOSFET

HM70N75D Description

N-Channel Trench Power MOSFET HM70N75D General .
The HM70N75D is N-channel MOS Field Effect Transistor designed for high current switching applications.

HM70N75D Features

* VDS=70V；ID=75A@ VGS=10V； RDS(ON)

📥 Download Datasheet

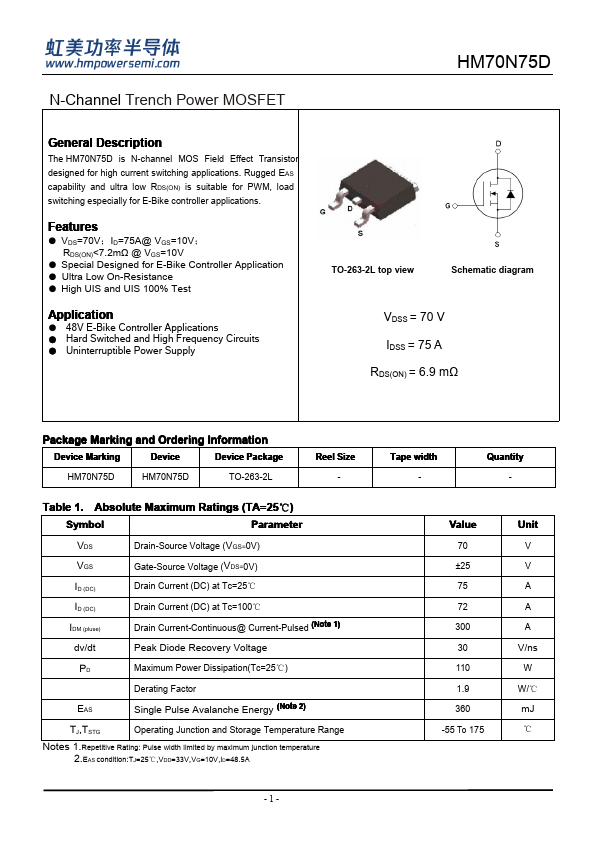

Preview of HM70N75D PDF

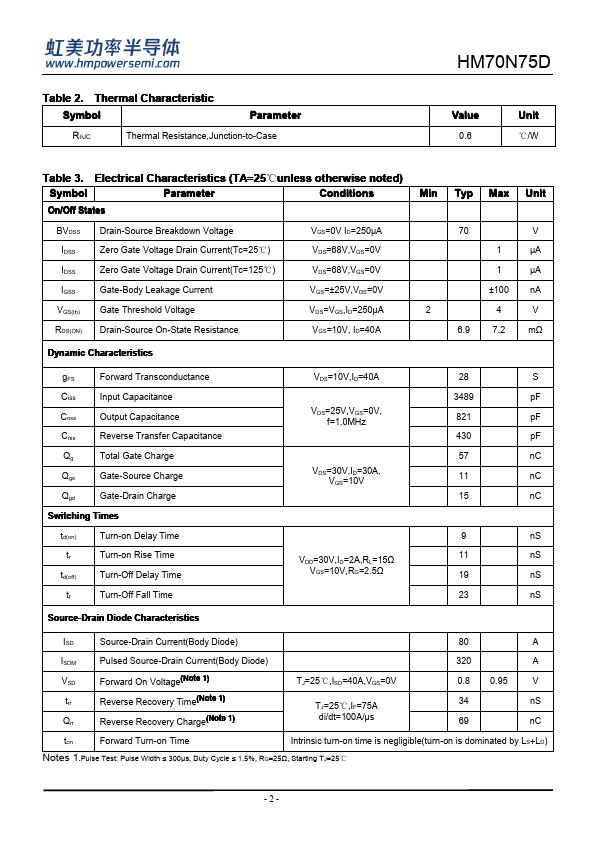

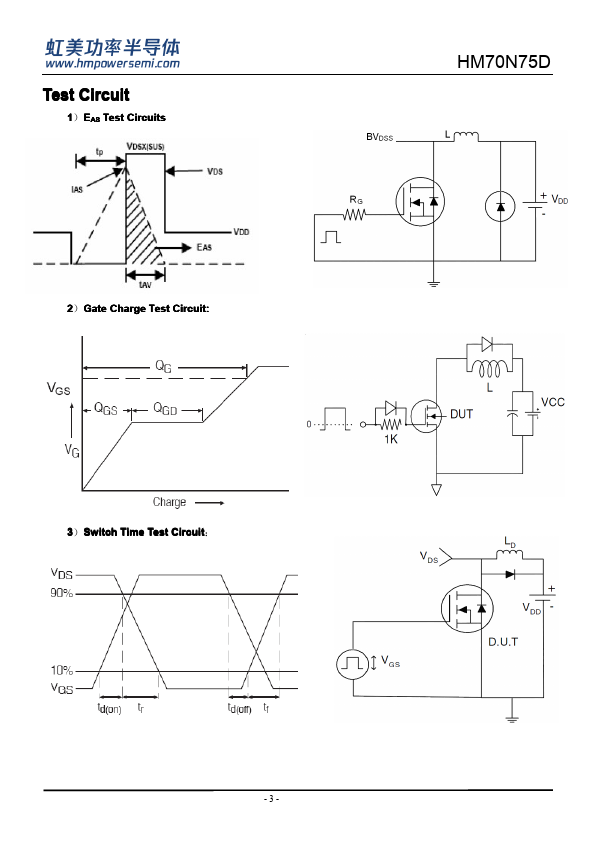

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM70N75D
Manufacturer
H&M Semiconductor
File Size
500.48 KB
Datasheet
HM70N75D-HMSemiconductor.pdf
Description
N-Channel Trench Power MOSFET
