HM70N90D - N-Channel Trench Power MOSFET

HM70N90D Description

N-Channel Trench Power MOSFET General .
The+01' is N-channel MOS Field Effect Transistor designed for high current switching applications.

HM70N90D Features

* VDS=70V；ID=90A@ VGS=10V； RDS(ON)

📥 Download Datasheet

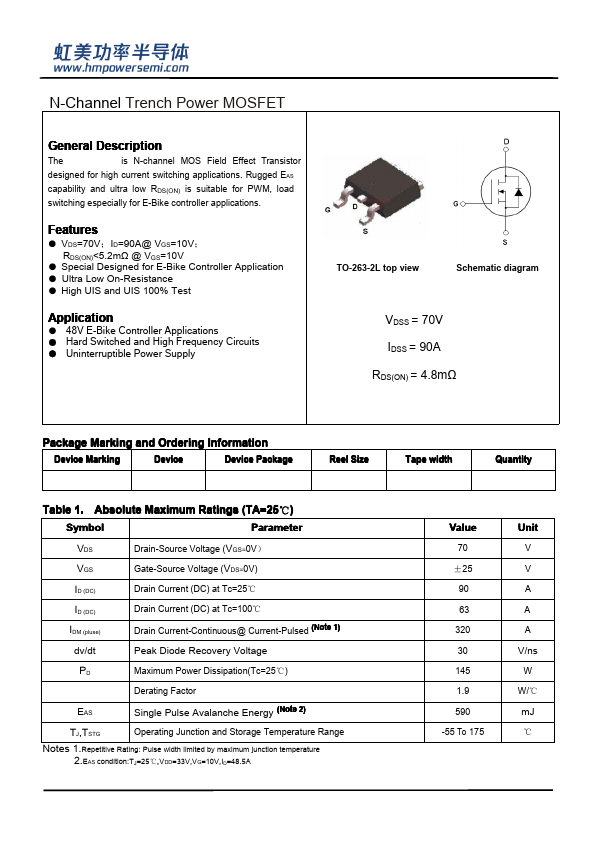

Preview of HM70N90D PDF

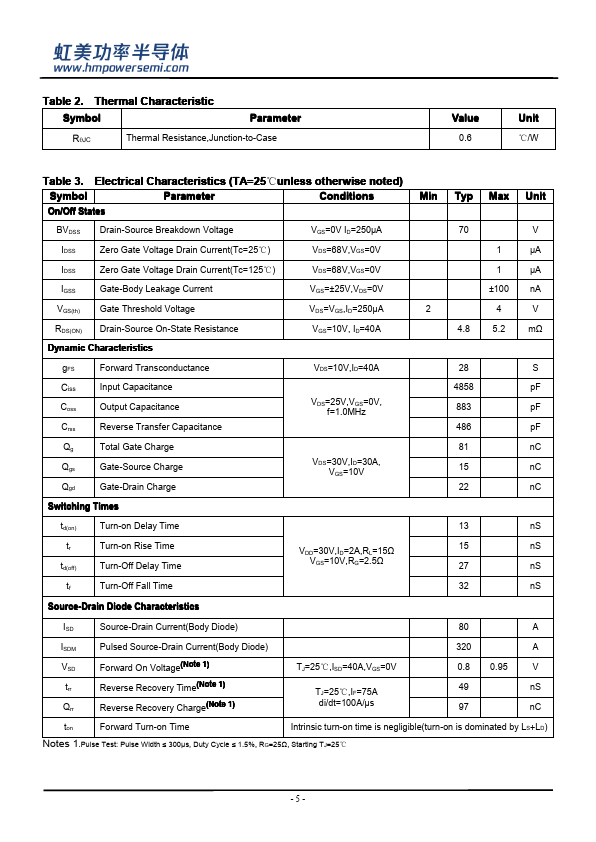

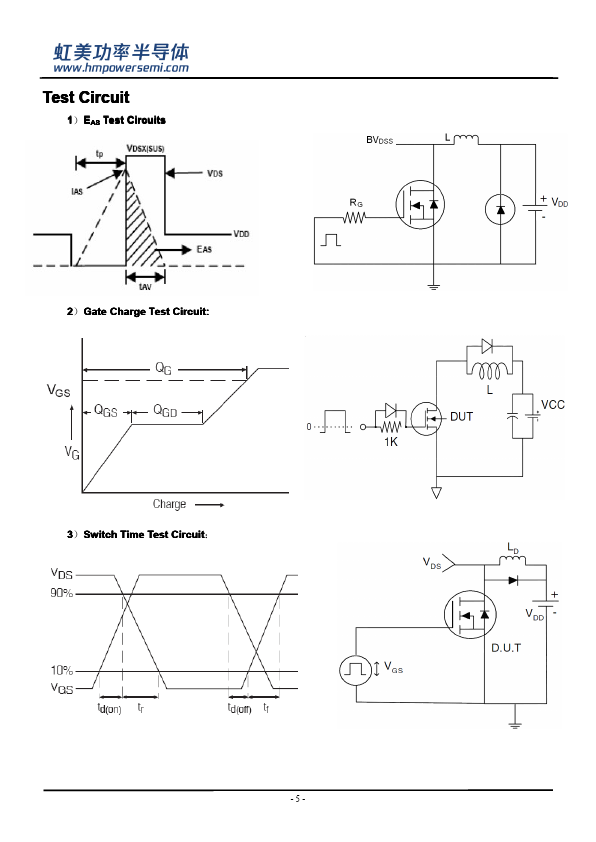

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM70N90D
Manufacturer
H&M Semiconductor
File Size
582.71 KB
Datasheet
HM70N90D-HMSemiconductor.pdf
Description
N-Channel Trench Power MOSFET
