HM75N06KA - N-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

HM75N06KA N-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM75N06KA

Datasheet Details

Part number	HM75N06KA
Manufacturer	H&M Semiconductor
File Size	607.17 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	HM75N06KA Datasheet

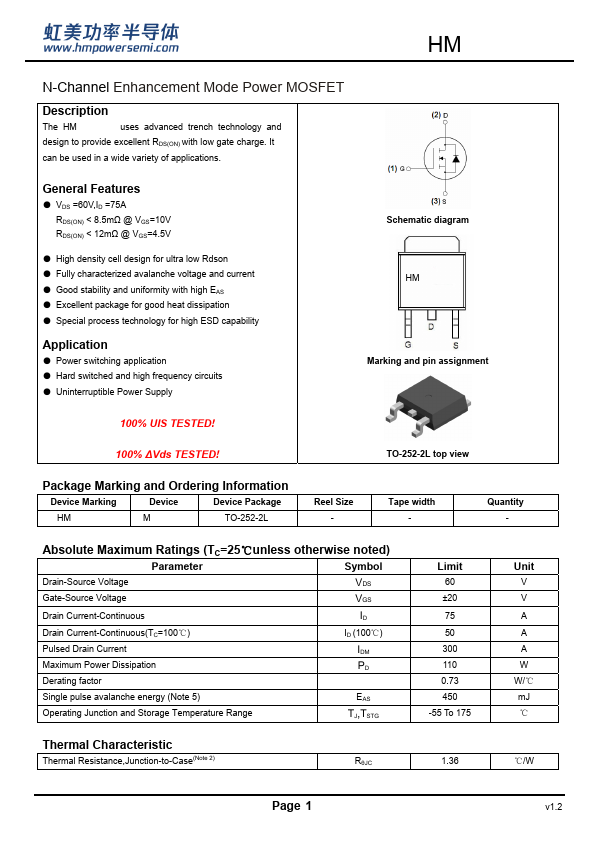

Additional preview pages of the HM75N06KA datasheet.

Product details

Description

The HM1.$ uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =60V,ID =75A RDS(ON) < 8.5mΩ @ VGS=10V RDS(ON) < 12mΩ @ VGS=4.5V.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation.
Special process technology for high ESD capability.
