HM75N120FT3 - 1200V 75A IGBT

HM75N120FT3 Description

HM75N120FT3 Part No.：HM75N120FT3 Package：TO-247Plus-3L .

HM75N120FT3 Features

* Low Switching Power Loss
* Low Switching Surge and Noise
* Advanced Field Stop Technology
* Low EMI
* Maximum Junction Temperature 175°C

HM75N120FT3 Applications

* Pb-free Lead Plating, Halogen-free Mold Compound, RoHS Compliant Applications:
* Industrial UPS
* Welding Machine
* Solar Converters
* Energy Storage
* EV Charger Key Performance and Package Parameters Type Vce Ic VCEsat,Tvj=25℃ Tvjmax Marking HM75N120FT3 1200V 75A

📥 Download Datasheet

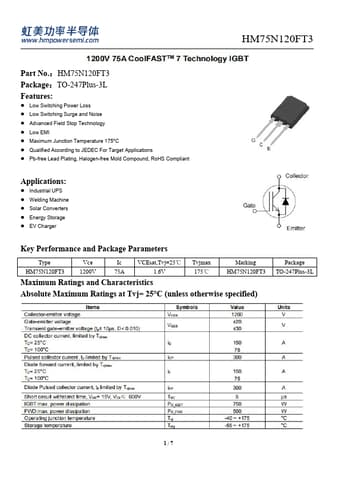

Preview of HM75N120FT3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM75N120FT3
Manufacturer
H&M Semiconductor
File Size
742.81 KB
Datasheet
HM75N120FT3-HMSemiconductor.pdf
Description
1200V 75A IGBT
