HM8332 - Three Channels Integrated Power Management IC

H&M Semiconductor

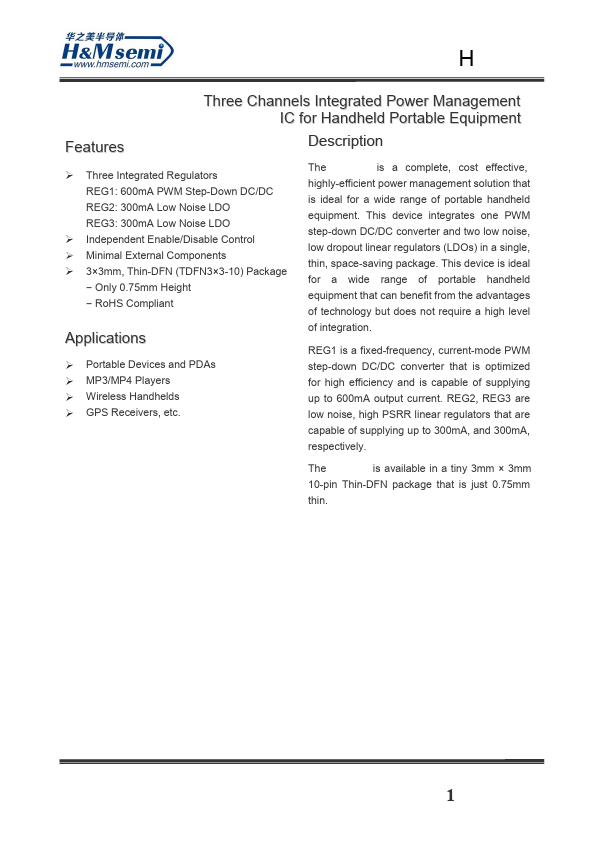

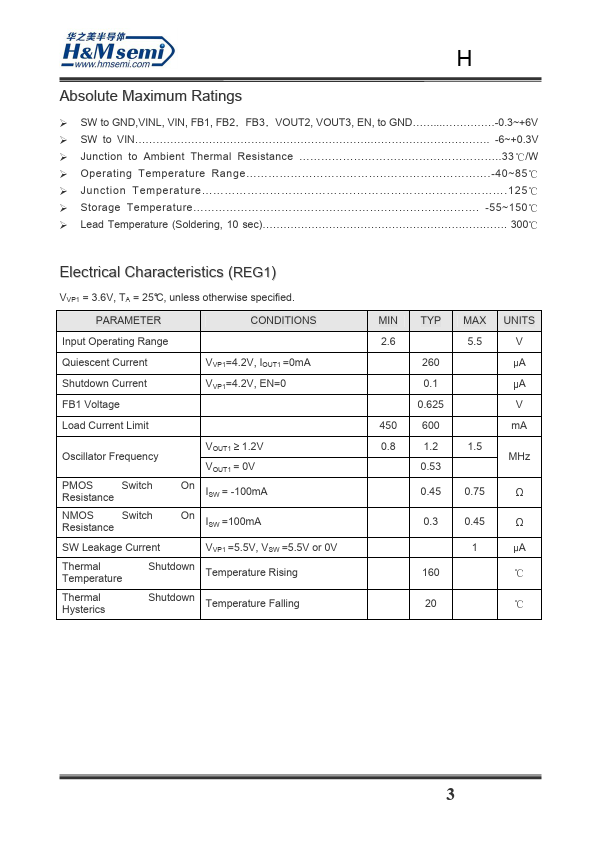

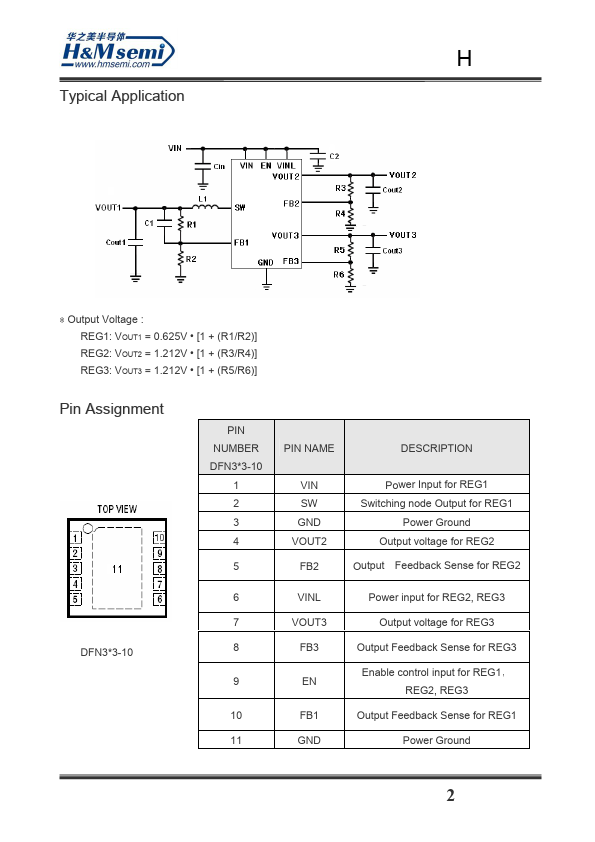

HM8332 Datasheet Preview — Preview of HM8332 PDF

Datasheet Details

Part number	HM8332
Manufacturer	H&M Semiconductor
File Size	190.04 KB
Description	Three Channels Integrated Power Management IC
Datasheet	HM8332-HMSemiconductor.pdf

HM8332 Product details

Description

Three Integrated Regulators REG1: 600mA PWM Step-Down DC/DC REG2: 300mA Low Noise LDO REG3: 300mA Low Noise LDO Independent Enable/Disable Control Minimal External Components 3×3mm, Thin-DFN (TDFN3×3-10) Package Only 0.75mm Height RoHS Compliant Applications Portable Devices and PDAs MP3/MP4 Players Wireless Handhelds GPS Receivers, etc.The +0 is a complete, cost effective, highly-efficient power management solution that is ideal for a wide range of portable handheld
