HM85P02 - P-Channel Enhancement Mode Power MOSFET

HM85P02 Description

HM85P02 P-Channel Enhancement Mode Power MOSFET .
The HM85P02 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

HM85P02 Features

* VDS =-20V,ID =-85A RDS(ON) < 7mΩ @ VGS=-4.5V RDS(ON) < 9mΩ @ VGS=-2.5V RDS(ON) < 12mΩ @ VGS=-1.8V
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS
* Excellent package for good heat d

📥 Download Datasheet

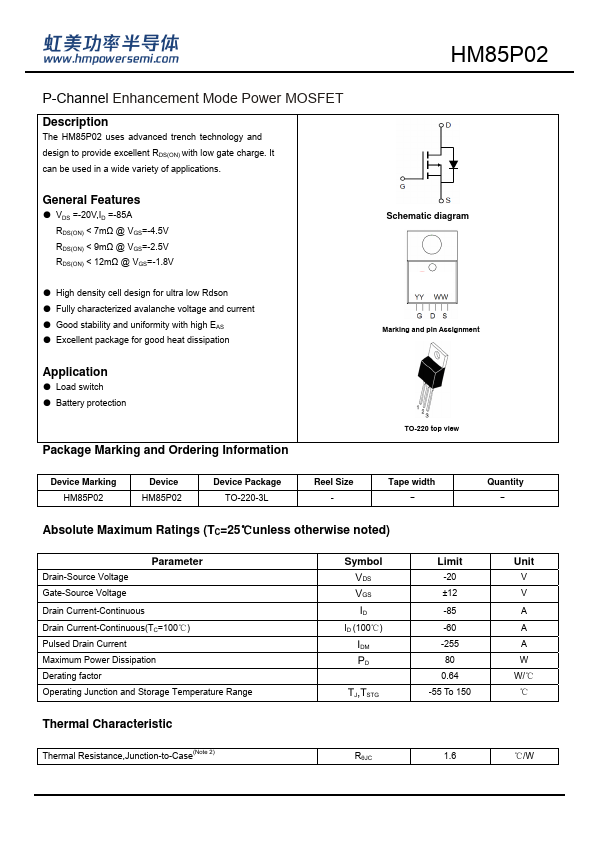

Preview of HM85P02 PDF

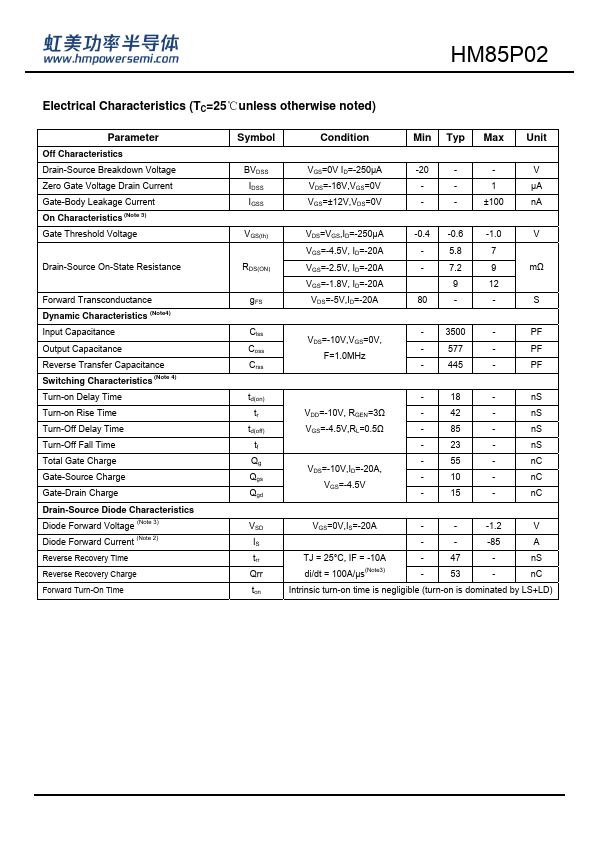

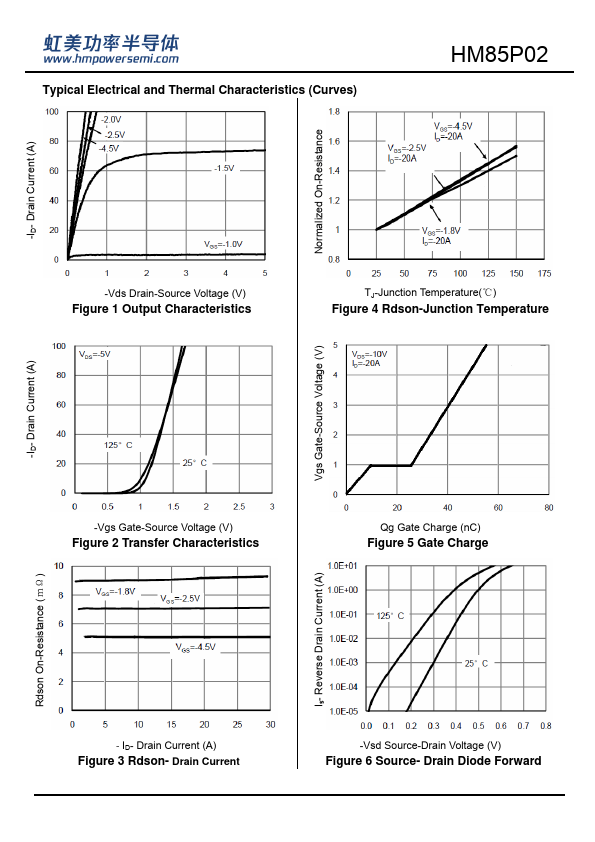

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM85P02
Manufacturer
H&M Semiconductor
File Size
594.47 KB
Datasheet
HM85P02-HMSemiconductor.pdf
Description
P-Channel Enhancement Mode Power MOSFET
