HMM35N90T - Silicon Carbide Power MOSFET

Datasheet Summary

Features

  • High blocking voltage with low On-resistance.
  • High Fast isnptreinesdicswdiiotcdheinwgitwhitlohwlorwevcearpseacrie tca on vc ee rsy ( Q r r).
  • Halogen free, RoHS compliant Benefits.
  • Higher system efficiency.
  • Reduced cooling requirements.
  • Increased power density.
  • Increased system switching frequency.

📥 Download Datasheet

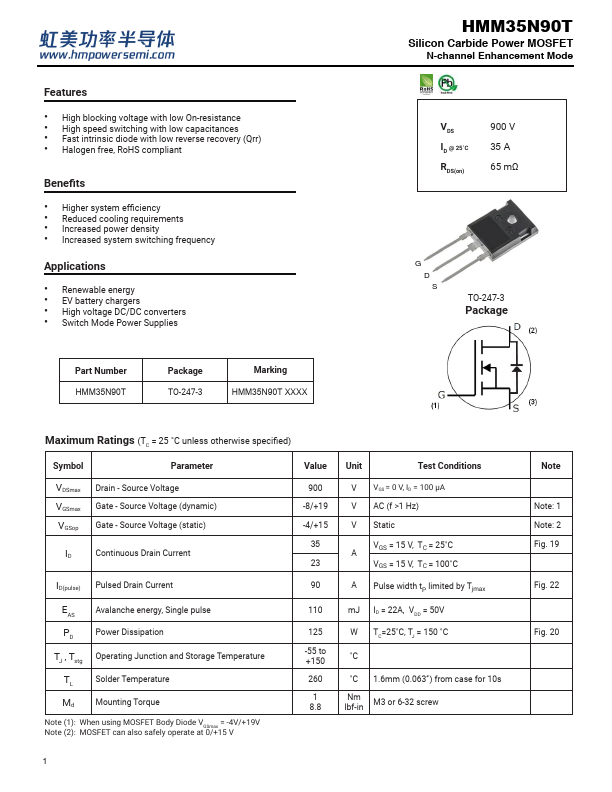

Datasheet preview – HMM35N90T

Datasheet Details

Part number HMM35N90T
Manufacturer H&M Semiconductor
File Size 877.11 KB
Description Silicon Carbide Power MOSFET
Datasheet download datasheet HMM35N90T Datasheet

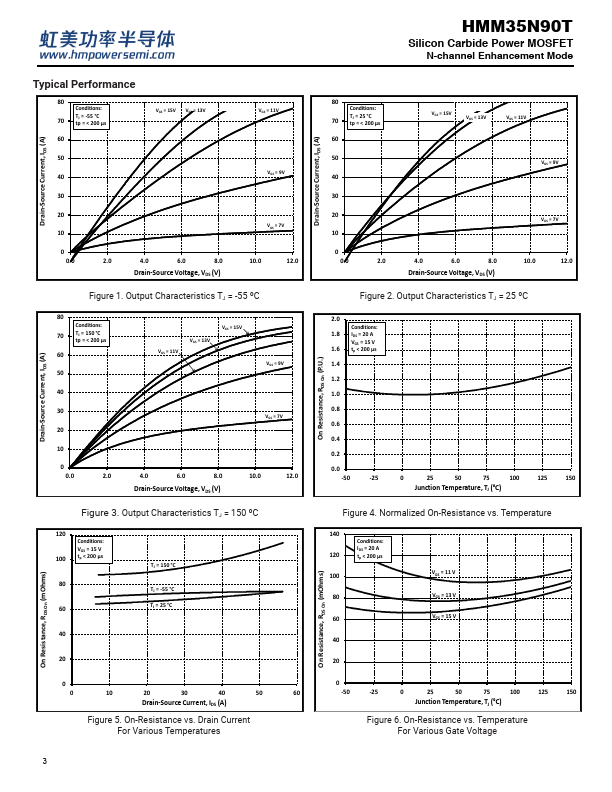

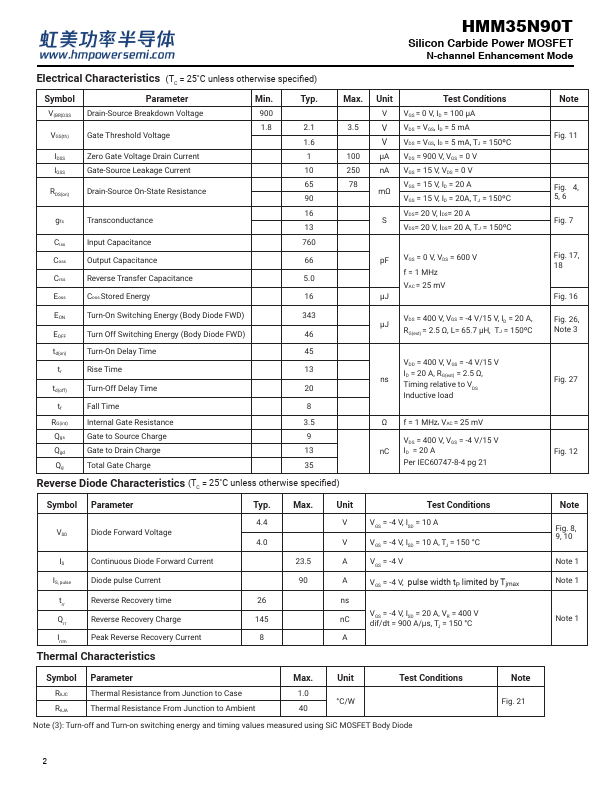

Additional preview pages of the HMM35N90T datasheet.

📁 Similar Datasheet

  • HMM1225 - 0.8A SCR (Hi-Sincerity Mocroelectronics)
  • HMM4148 - SURFACE MOUNT SITCHING DIODES (Hi-Sincerity Mocroelectronics)
  • HMM5121B - ZENER DIODES (Hi-Sincerity Mocroelectronics)
  • HMM5122B - ZENER DIODES (Hi-Sincerity Mocroelectronics)
  • HMM5122B - ZENER DIODES (Hi-Sincerity Mocroelectronics)
  • HMM5123B - ZENER DIODES (Hi-Sincerity Mocroelectronics)
  • HMM5124B - ZENER DIODES (Hi-Sincerity Mocroelectronics)
  • HMM5125B - ZENER DIODES (Hi-Sincerity Mocroelectronics)
  • HMM5126B - ZENER DIODES (Hi-Sincerity Mocroelectronics)
  • HMM5127B - ZENER DIODES (Hi-Sincerity Mocroelectronics)
Other Datasheets by H&M Semiconductor

Full PDF Text Transcription

Click to expand full text
Features • High blocking voltage with low On-resistance • • High Fast isnptreinesdicswdiiotcdheinwgitwhitlohwlorwevcearpseacrie tca on vc ee rsy ( Q r r) • Halogen free, RoHS compliant Benefits • Higher system efficiency • Reduced cooling requirements • Increased power density • Increased system switching frequency Applications • Renewable energy • EV battery chargers • High voltage DC/DC converters • Switch Mode Power Supplies HMM35N90T Silicon Carbide Power MOSFET N-cNh-acnhnanenl eElnEhnahnacnecmemeennt tMMooddee VDS ID @ 25˚C RDS(on) 900 V 35 A 65 mΩ G D S TO-247-3 Package Part Number HMM35N90T Package TO-247-3 Marking HMM35N90T XXXX Maximum Ratings (TC = 25 ˚C unless otherwise specified) Symbol Parameter Value VDSmax VGSmax VGSop Drain - Source Voltage Gate - Sourc
