HMM60N120T - Silicon Carbide Power MOSFET

HMM60N120T Description

HMM60N120T Silicon Carbide Power MOSFET N-channel Enhancement Mode .

HMM60N120T Features

* High Blocking Voltage with Low On-Resistance
* High Speed Switching with Low Capacitances
* Easy to Parallel and Simple to Drive
* Resistant to Latch-Up
* Halogen Free, RoHS Compliant Benefits
* Higher System Efficiency
* Reduced Cooling Requ

HMM60N120T Applications

* Solar Inverters
* Switch Mode Power Supplies
* High Voltage DC/DC converters
* Battery Chargers
* Motor Drives
* Pulsed Power Applications Part Number +0017 Package 72 Marking +0017;;;; VDS ID @ 25˚C RDS(on) 1200 V 55 A 40 mΩ

📥 Download Datasheet

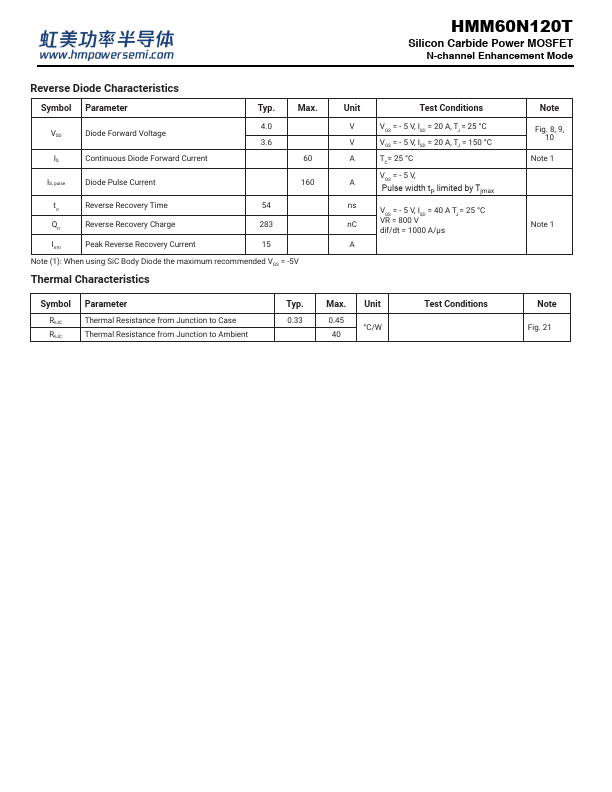

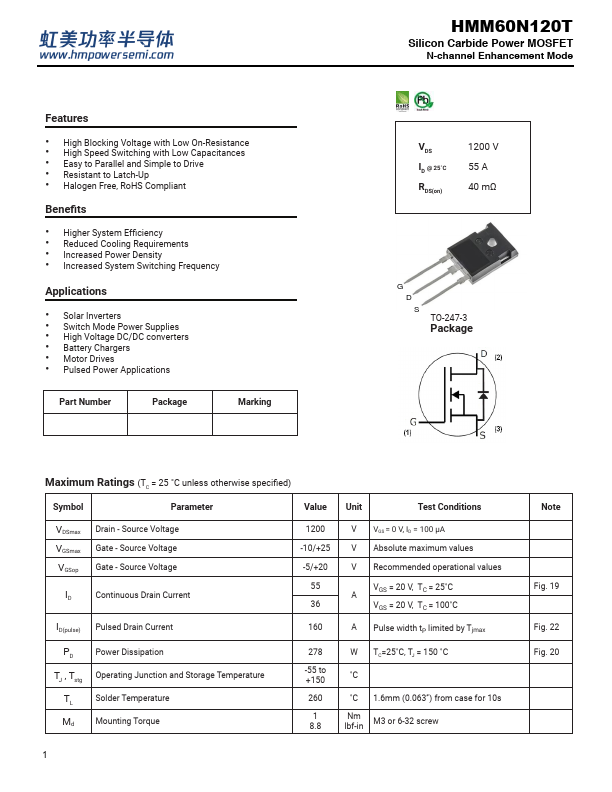

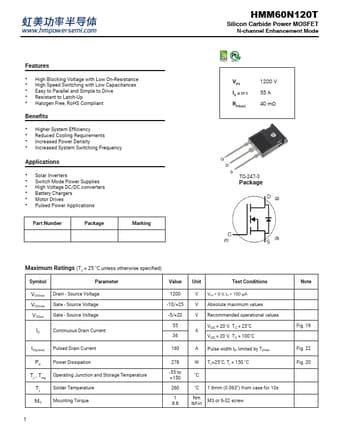

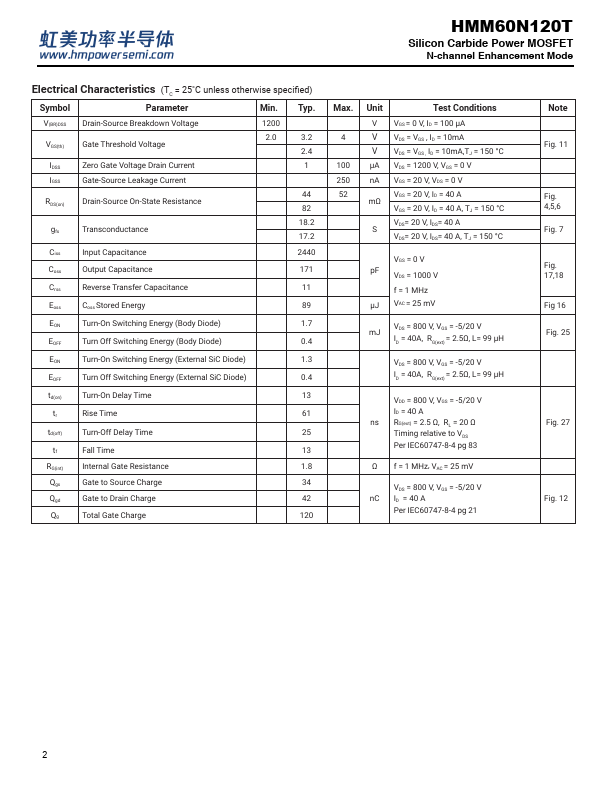

Preview of HMM60N120T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMM60N120T
Manufacturer
H&M Semiconductor
File Size
1.20 MB
Datasheet
HMM60N120T-HMSemiconductor.pdf
Description
Silicon Carbide Power MOSFET
