HMM1225 0.8A SCR

Hi-Sincerity Mocroelectronics

Description

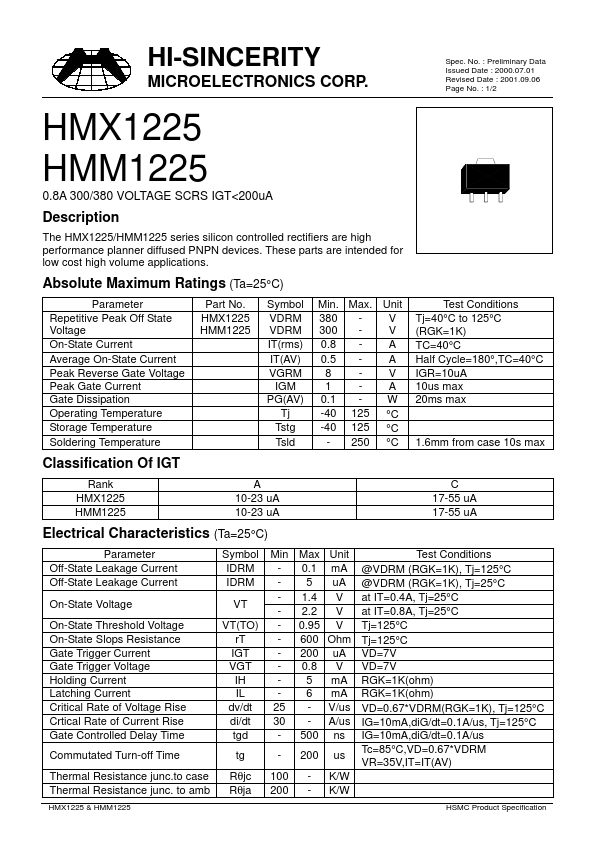

HI-SINCERITY MICROELECTRONICS CORP.Spec.No.: Preliminary Data Issued Date : 2000.07.01 Revised Date : 2001.09.06 Page No.: 1/2 HMX1225 HMM1225 .
The HMX1225/HMM1225 series silicon controlled rectifiers are high performance planner diffused PNPN devices.

📥 Download Datasheet

HMM1225 Datasheet Preview — Preview of HMM1225 PDF

Datasheet Specifications

Part number: HMM1225
Manufacturer: Hi-Sincerity Mocroelectronics
File Size: 21.30 KB
Datasheet: HMM1225-HiSincerityMocroelectronics.pdf
Description: 0.8A SCR

Applications

* Absolute Maximum Ratings (Ta=25°C) Parameter Repetitive Peak Off State Voltage On-State Current Average On-State Current Peak Reverse Gate Voltage Peak Gate Current Gate Dissipation Operating Temperature Storage Temperature Soldering Temperature Part No. HMX1225 HMM1225 Symbol VDRM VDRM IT(rms)
