HMS135N03D N-Channel Super Trench Power MOSFET

The HMS135N03D uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching.

HMS135N03D Features

* VDS =30V,ID =135A RDS(ON)=1.7mΩ (typical) @ VGS=10V RDS(ON)=2.7mΩ (typical) @ VGS=4.5V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Application

* DC/DC Converter

HMS135N03D-HMSemiconductor.pdf

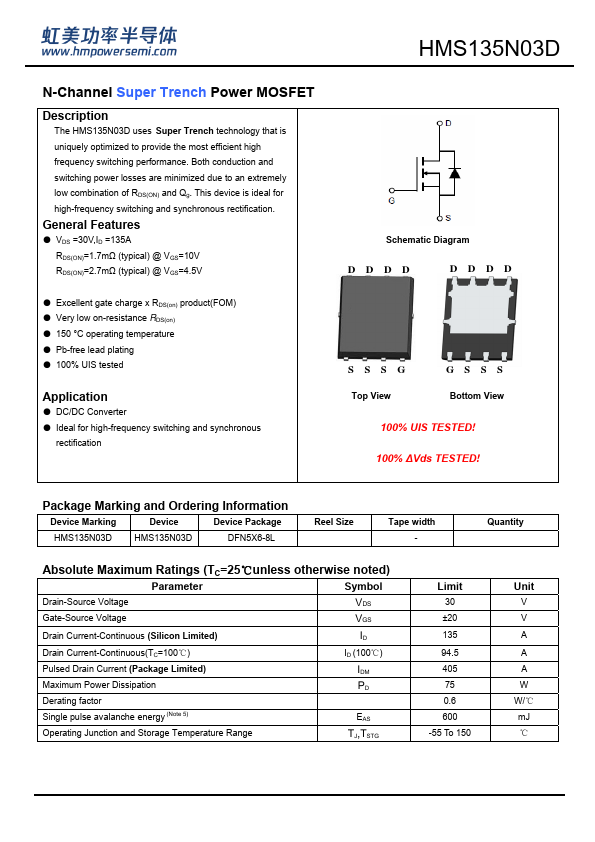

Preview of HMS135N03D PDF

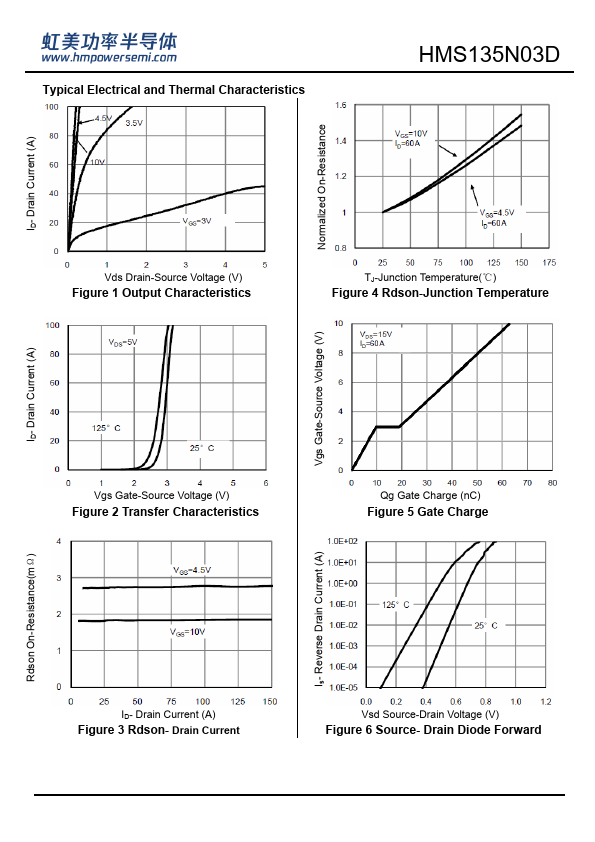

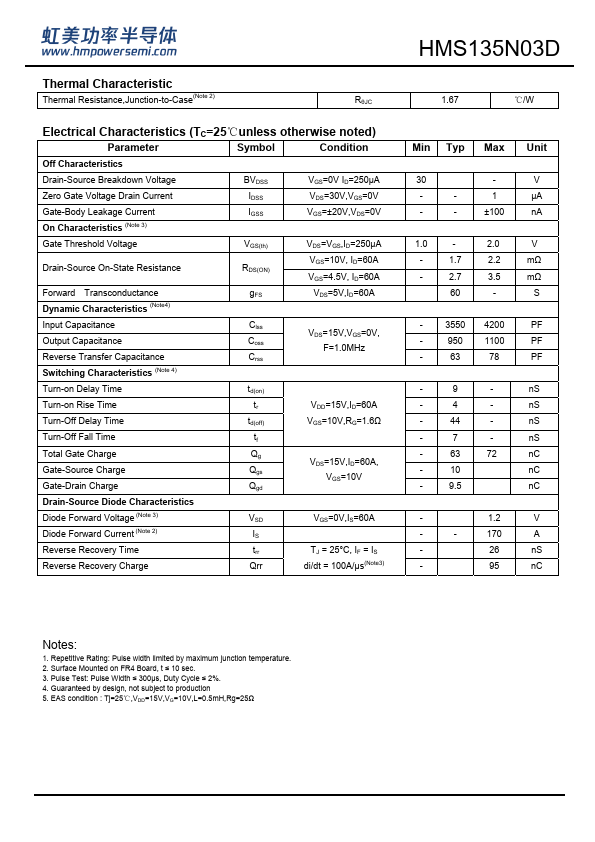

HMS135N03D Datasheet Preview Page 2 HMS135N03D Datasheet Preview Page 3

Datasheet Details

Part number:

HMS135N03D

Manufacturer:

H&M Semiconductor

File Size:

499.88 KB

Description:

N-channel super trench power mosfet.
