HMS135N04D N-Channel Super Trench Power MOSFET

The HMS135N04D uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching.

HMS135N04D Features

* VDS =40V,ID =135A RDS(ON)=2.2mΩ (typical) @ VGS=10V RDS(ON)=3.2mΩ (typical) @ VGS=4.5V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Application

* DC/DC Converter

HMS135N04D-HMSemiconductor.pdf

Preview of HMS135N04D PDF

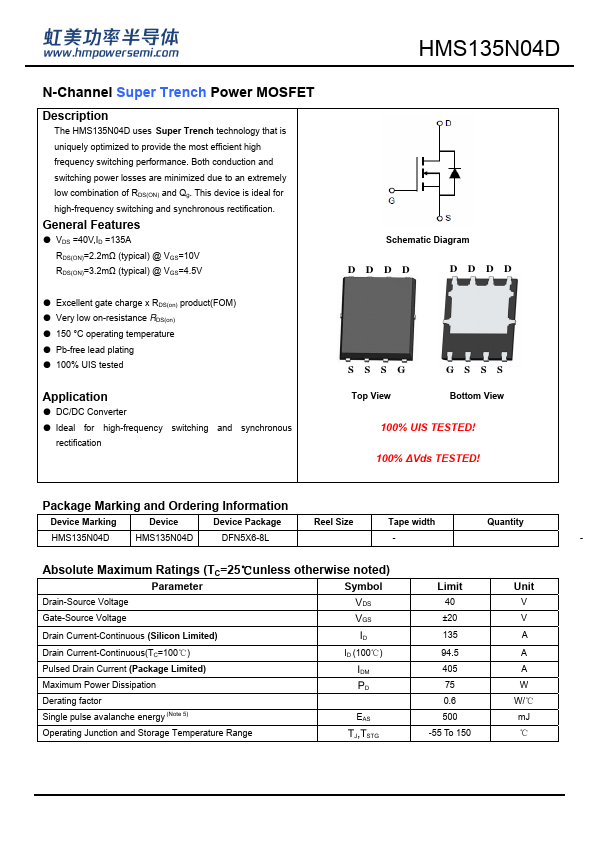

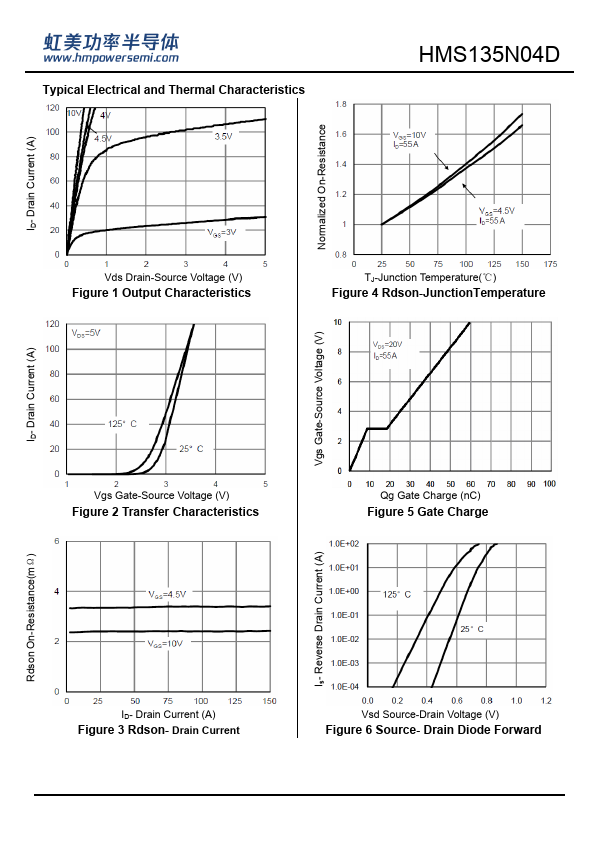

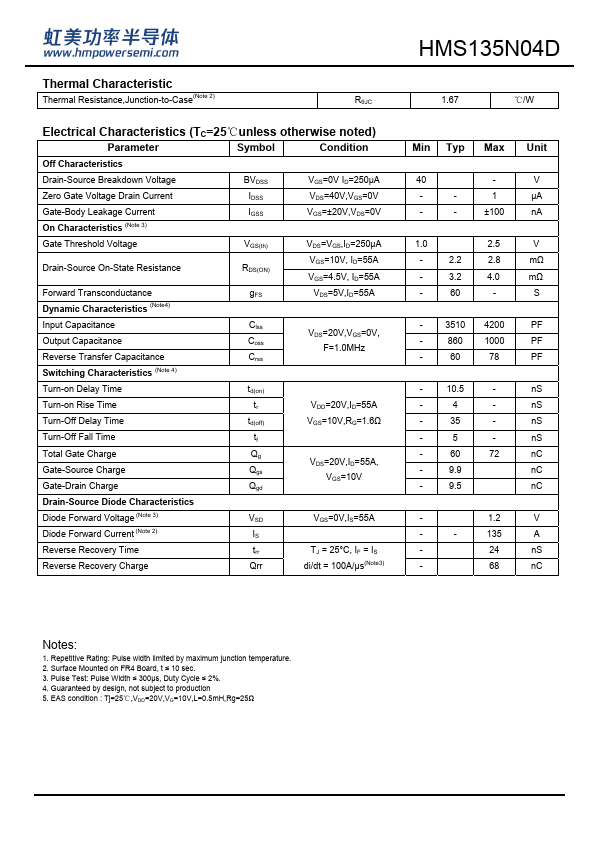

HMS135N04D Datasheet Preview Page 2 HMS135N04D Datasheet Preview Page 3
