HMS150N04A N-Channel Super Trench Power MOSFET

H&M Semiconductor

Description

N-Channel Super Trench Power MOSFET .
The HMS150N04A uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

📥 Download Datasheet

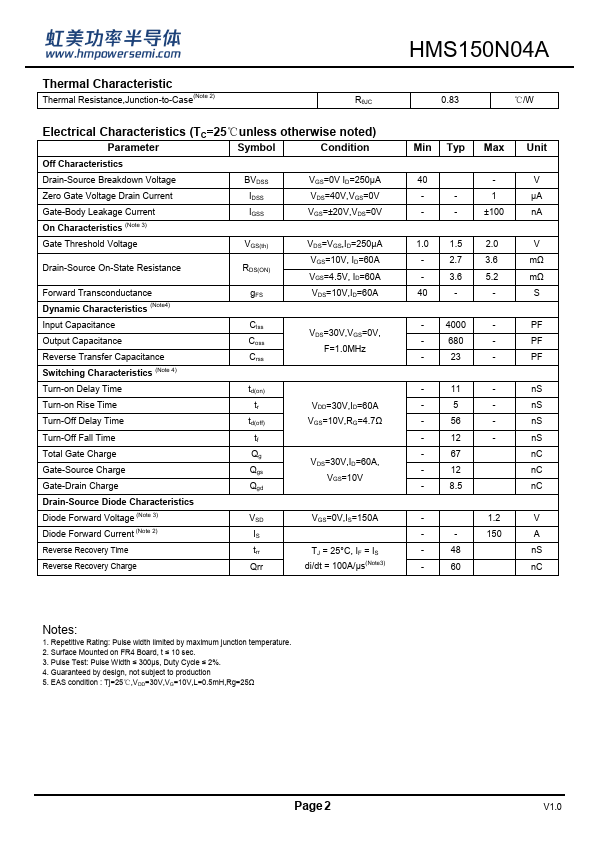

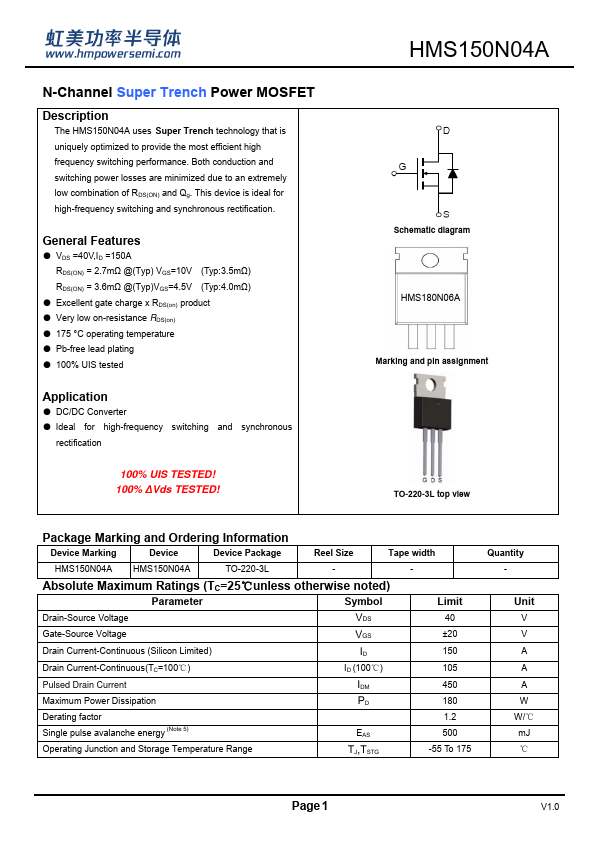

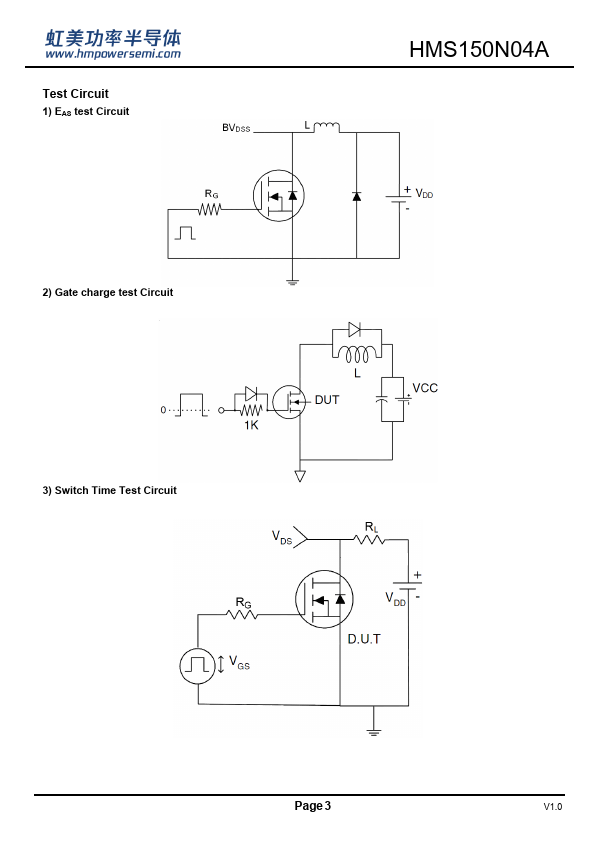

HMS150N04A Datasheet Preview — Preview of HMS150N04A PDF

Datasheet Specifications

Part number: HMS150N04A
Manufacturer: H&M Semiconductor
File Size: 692.98 KB
Datasheet: HMS150N04A-HMSemiconductor.pdf
Description: N-Channel Super Trench Power MOSFET

Features

* VDS =40V,ID =150A RDS(ON) = 2.7mΩ @(Typ) VGS=10V (Typ:3.5mΩ) RDS(ON) = 3.6mΩ @(Typ)VGS=4.5V (Typ:4.0mΩ)
* Excellent gate charge x RDS(on) product
* Very low on-resistance RDS(on)
* 175 °C operating temperature
* Pb-free lead plating
