HMS150N04D N-Channel Super Trench Power MOSFET

H&M Semiconductor

Description

N-Channel Super Trench Power MOSFET .
The HMS150N04D uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

📥 Download Datasheet

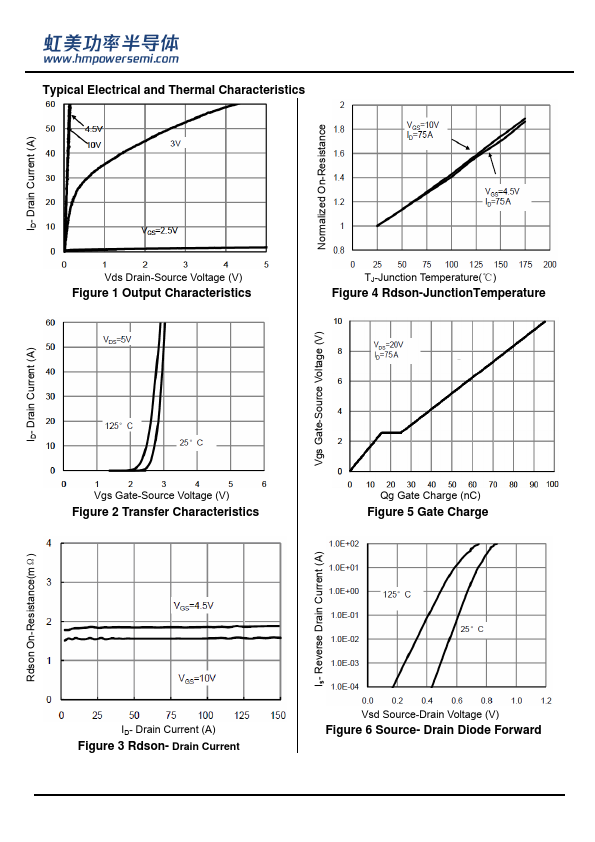

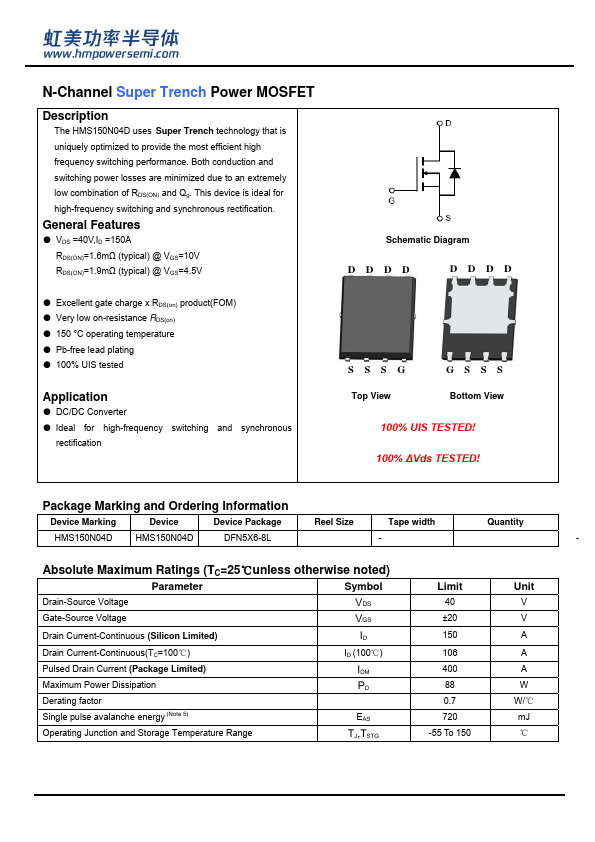

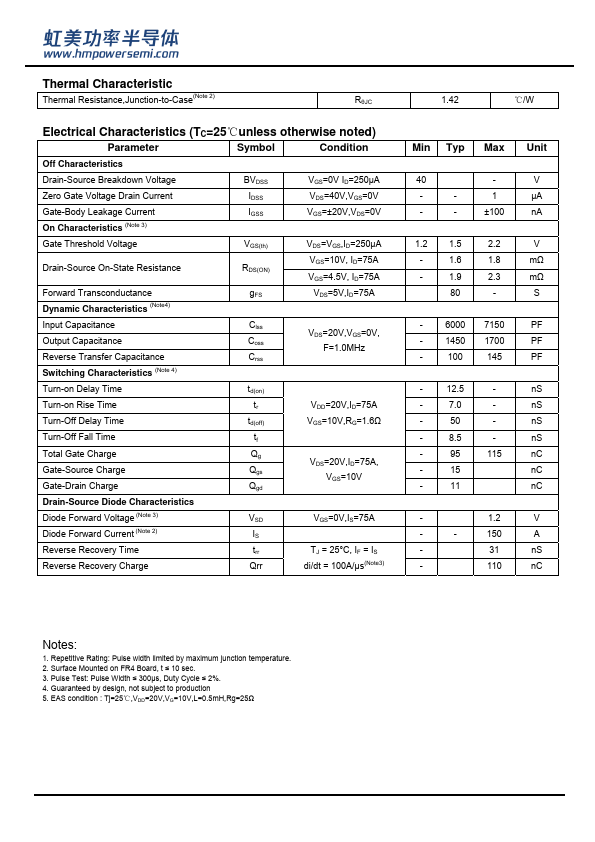

HMS150N04D Datasheet Preview — Preview of HMS150N04D PDF

Datasheet Specifications

Part number: HMS150N04D
Manufacturer: H&M Semiconductor
File Size: 409.38 KB
Datasheet: HMS150N04D-HMSemiconductor.pdf
Description: N-Channel Super Trench Power MOSFET

Features

* VDS =40V,ID =150A RDS(ON)=1.6mΩ (typical) @ VGS=10V RDS(ON)=1.9mΩ (typical) @ VGS=4.5V
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 150 °C operating temperature
* Pb-free lead plating
