HM1483C Datasheet - H&M semi

HM1483C Wide Range Synchronous Buck Controller

The +0& is a synchronous step down regulator from a high voltage input supply. Operating with an input voltage range from 8V to 30V, the +0& achieves 2.8A continuous output current with excellent load and line regulation. The switching frequency is programmable from 130 kHz to 500 kHz and th.

HM1483C Features

* include cable compensation, programmable current limit and thermal shutdown. The +0& converters are available in the industry standard SOP-8L packages. Typical Application Circuit

* The output voltage is set by R2 and R3: VOUT = 1.21V

* [1 + (R2/R3)].

* RT: RT is optional. The

HM1483C Datasheet (589.31 KB)

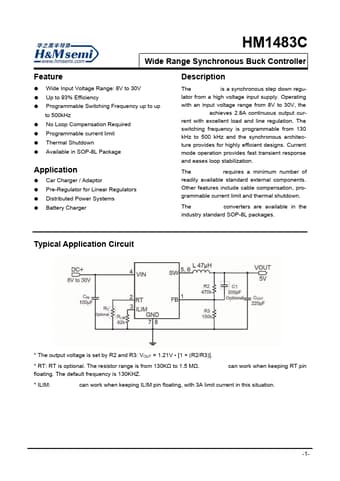

Preview of HM1483C PDF

Datasheet Details

Part number:

HM1483C

Manufacturer:

H&M semi

File Size:

589.31 KB

Description:

Wide range synchronous buck controller.
