HM1484D - 30V 3A 500KHz Synchronous Step-Down Regulator

H&M Semiconductor

📥 Download Datasheet

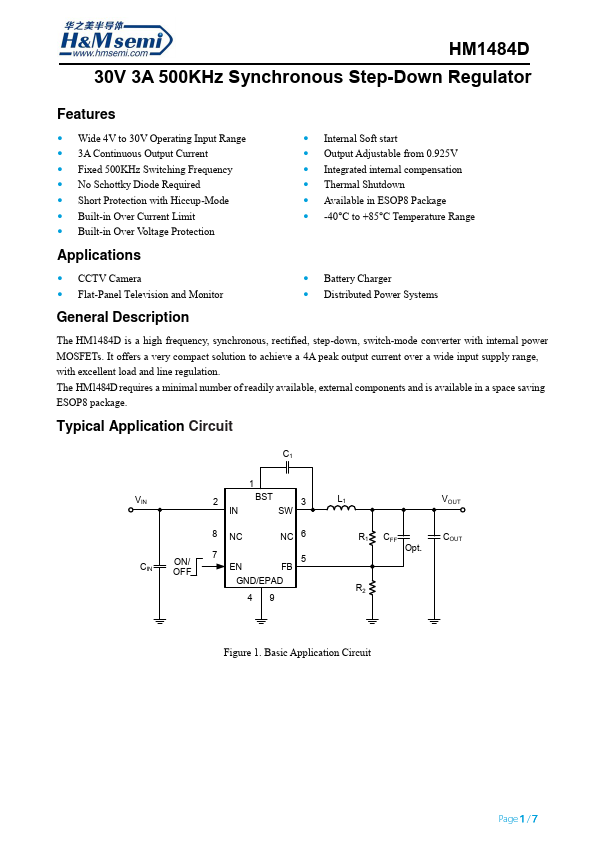

HM1484D Datasheet Preview — Preview of HM1484D PDF

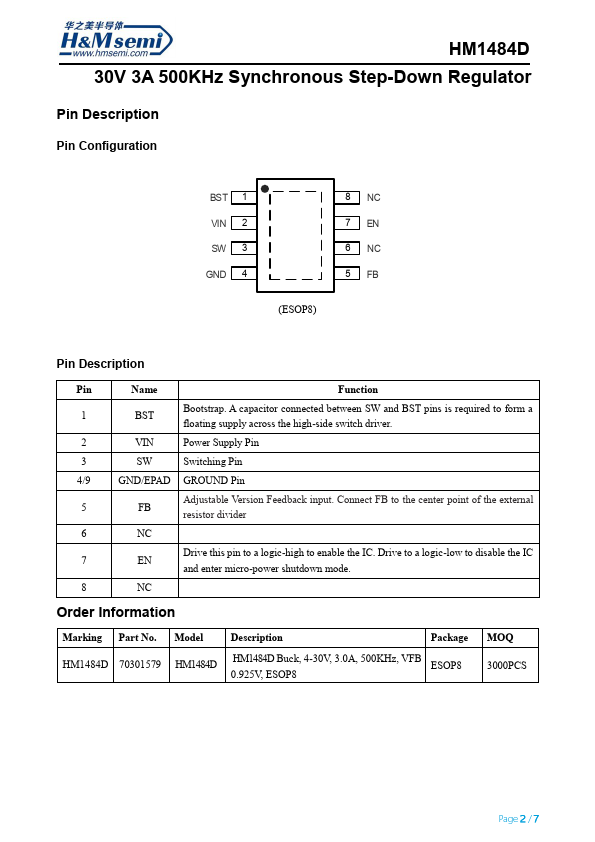

datasheet Preview Page 2

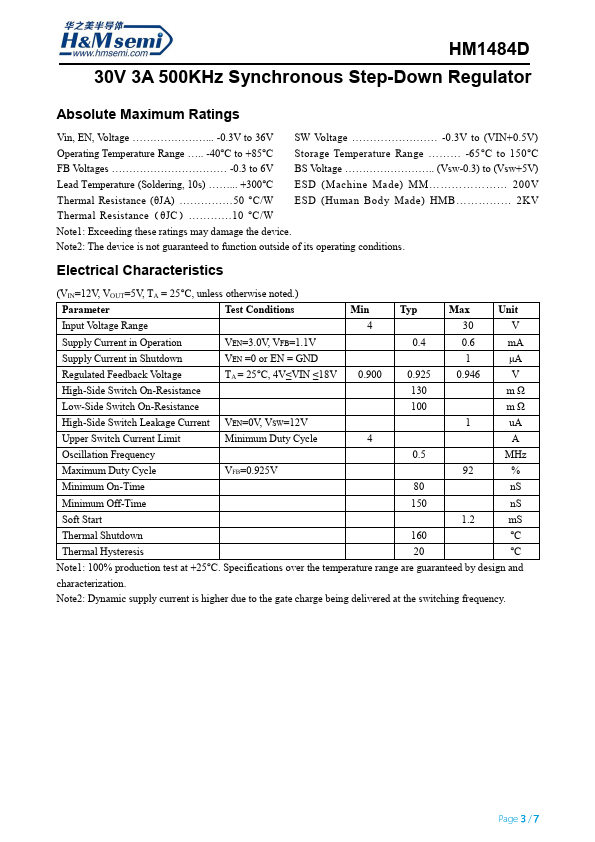

datasheet Preview Page 3

Datasheet Details

Part number	HM1484D
Manufacturer	H&M Semiconductor
File Size	787.46 KB
Description	30V 3A 500KHz Synchronous Step-Down Regulator
Datasheet	HM1484D-HMSemiconductor.pdf

HM1484D Product details

Description

The HM1484D is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs.

Features

Wide 4V to 30V Operating Input Range.
3A Continuous Output Current.
Fixed 500KHz Switching Frequency.
No Schottky Diode Required.
Short Protection with Hiccup-Mode.
Built-in Over Current Limit.
Built-in Over Voltage Protection.
Internal Soft start.
Output Adjustable from 0.925V.
Integrated internal compensation.
Thermal Shutdown.
Available in ESOP8 Package.
-40°C to +85°C Tempe.
