HM1486 Datasheet, Converter, H&M semi

HM1486 Features

  • Converter
  • 3.6V to 40V operating input range 2A output current
  • Up to 94% efficiency
  • High efficiency (>78%) at light load
  • Internal Soft-Start
  • Fixed

PDF File Details

Part number:

HM1486

Manufacturer:

H&M semi

File Size:

861.29kb

Download:

📄 Datasheet

Description:

2a 40v synchronous step-down converter. The HM1486. is a current mode monolithic buck switching regulator. Operating with an input range of 3.6-40V, the HM1486 delivers 2A o

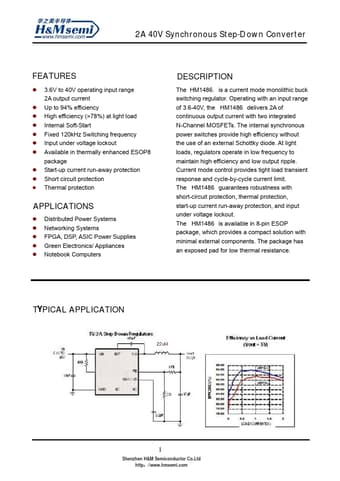

Datasheet Preview: HM1486 📥 Download PDF (861.29kb)
Page 2 of HM1486 Page 3 of HM1486

HM1486 Application

  • Applications
  • Distributed Power Systems
  • Networking Systems
  • FPGA, DSP, ASIC Power Supplies
  • Green Electronics/
