HM1404B - N-Channel Enhancement Mode MOSFET

H&M Semiconductor

HM1404B Datasheet Preview — Preview of HM1404B PDF

Datasheet Details

Part number	HM1404B
Manufacturer	H&M Semiconductor
File Size	560.57 KB
Description	N-Channel Enhancement Mode MOSFET
Datasheet	HM1404B-HMSemiconductor.pdf

HM1404B Product details

Description

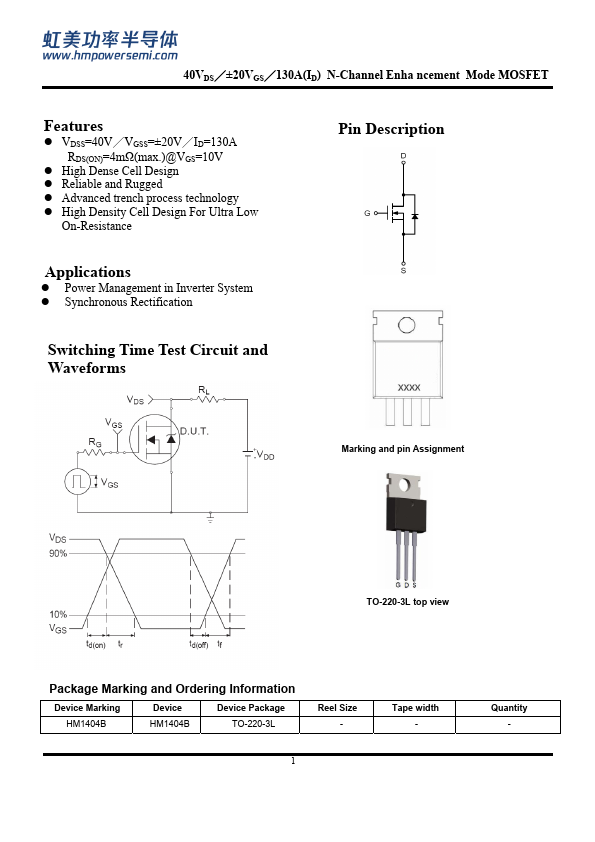

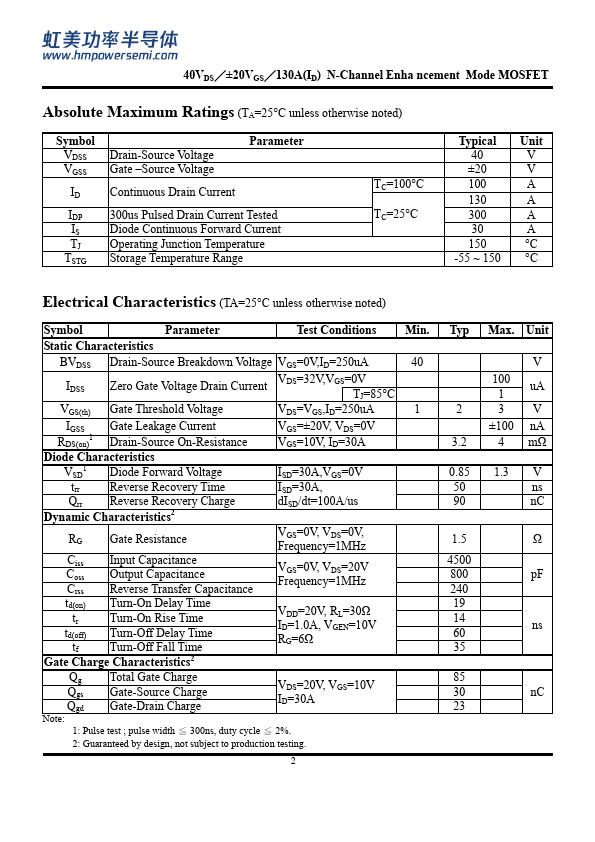

Switching Time Test Circuit and Waveforms +0% Marking and pin Assignment TO-220-3L top view Package Marking and Ordering Information Device Marking Device Device Package HM1404B HM1404B TO-220-3L Reel Size - 1 Tape width - Quantity - +0% 40VDS／±20VGS／130A(ID) N-Channel Enha ncement Mode MOSFET Absolute Maximum Ratings (TA=25°C unless otherwise noted) Symbol VDSS VGSS ID IDP IS TJ TS

Features

VDSS=40V／VGSS=±20V／ID=130A RDS(ON)=4mΩ(max. )@VGS=10V.
High Dense Cell Design.
Reliable and Rugged.
Advanced trench process technology.
High Density Cell Design For Ultra Low On-Resistance Applications.
Power Management in Inverter System.
Synchronous Rectification Pin.
