HYG028N10NS1B6 - N-Channel Enhancement Mode MOSFET

HOOYI

HYG028N10NS1B6 Description

HYG028N10NS1B6 N-Channel Enhancement Mode MOSFET .
Pin7 Pin1 TO-263-6L Pin4 Pin1 Ordering and Marking Information B6 G028N10 XYMXXXXXX Package Code B6 :TO-263-6L Date Code XYMXXXXXX Pin2,3,5,6,7 N-C.

HYG028N10NS1B6 Applications

* Power Switching application
* Uninterruptible Power Supply

📥 Download Datasheet

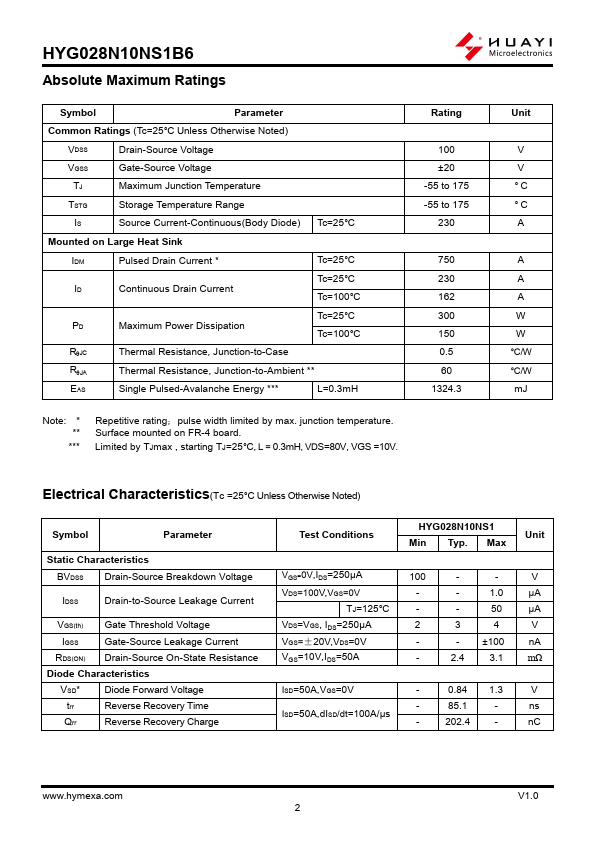

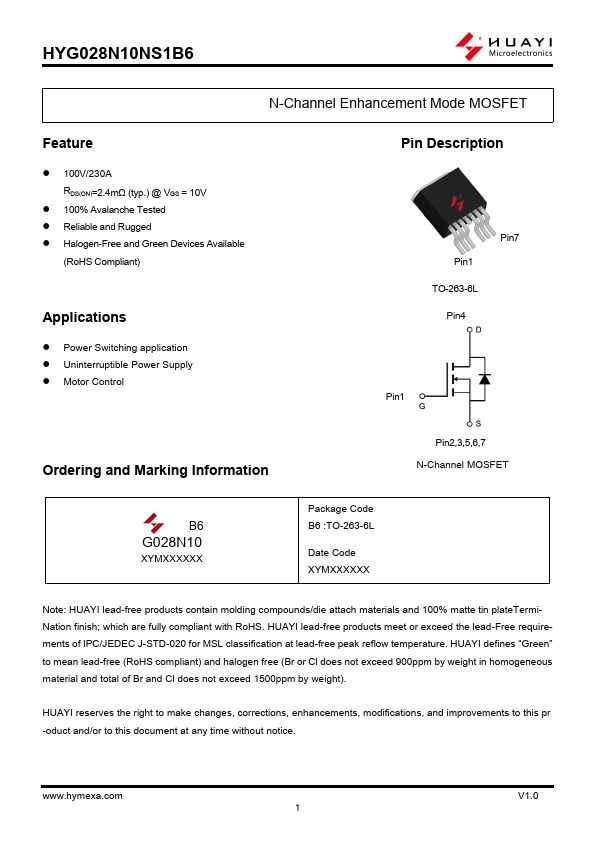

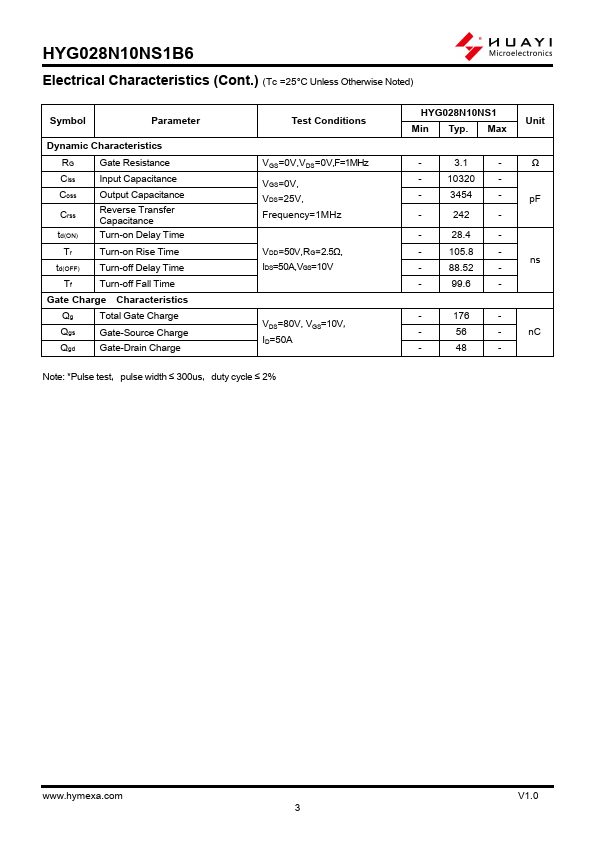

HYG028N10NS1B6 Datasheet Preview — Preview of HYG028N10NS1B6 PDF

Datasheet Details

Part number: HYG028N10NS1B6
Manufacturer: HOOYI
File Size: 1.50 MB
Datasheet: HYG028N10NS1B6-HOOYI.pdf
Description: N-Channel Enhancement Mode MOSFET
