HYG023N04NR1D - N-Channel Enhancement Mode MOSFET

Description

S GD Applications Load Switch Battery Protection Single N-Channel MOSFET Ordering and Marking Information D G023N04 XYMXXXXXX Package Code D: TO-252-2L Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate TermiNa

📥 Download Datasheet

Datasheet preview – HYG023N04NR1D

Datasheet Details

Part number HYG023N04NR1D
Manufacturer HOOYI
File Size 1.38 MB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet HYG023N04NR1D Datasheet

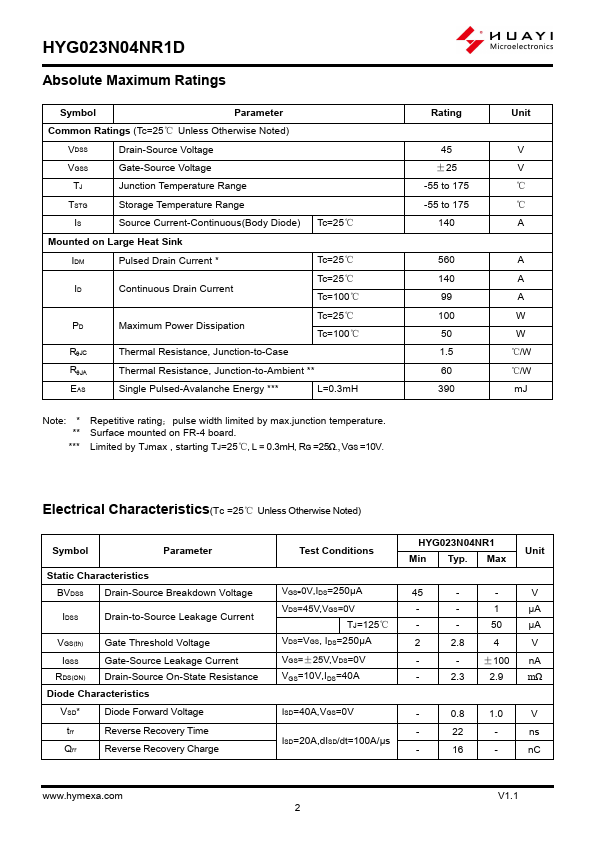

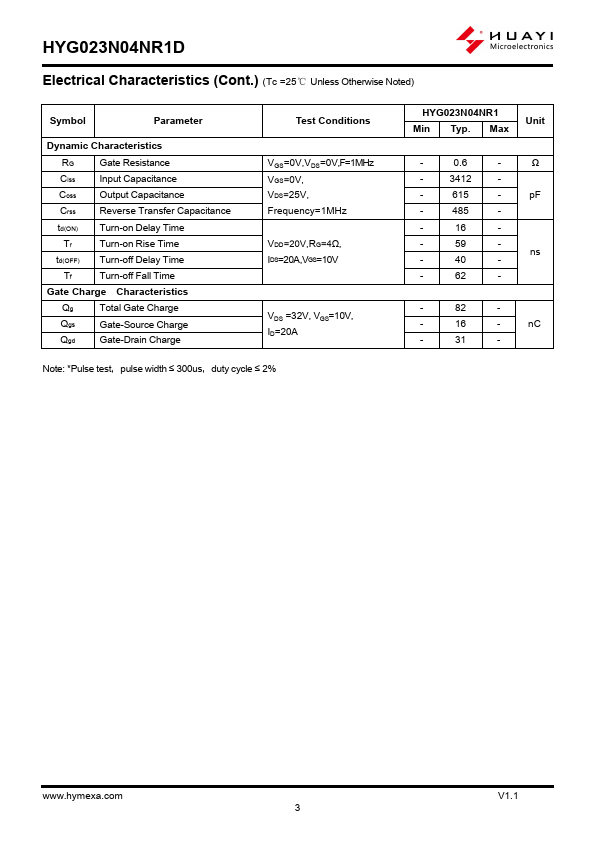

Additional preview pages of the HYG023N04NR1D datasheet.

📁 Similar Datasheet

Other Datasheets by HOOYI

Full PDF Text Transcription

Click to expand full text

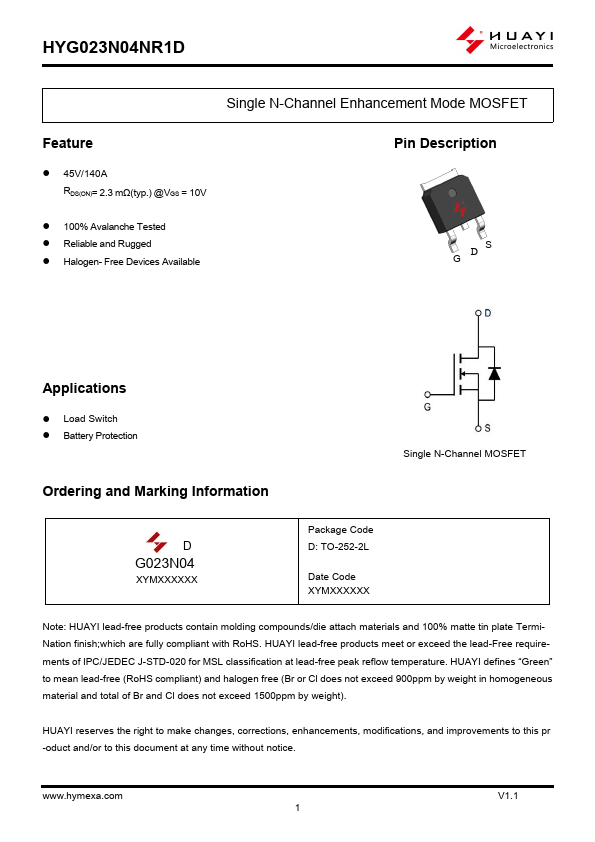

HYG023N04NR1D Single N-Channel Enhancement Mode MOSFET Feature  45V/140A RDS(ON)= 2.3 mΩ(typ.) @VGS = 10V  100% Avalanche Tested  Reliable and Rugged  Halogen- Free Devices Available Pin Description S GD Applications  Load Switch  Battery Protection Single N-Channel MOSFET Ordering and Marking Information D G023N04 XYMXXXXXX Package Code D: TO-252-2L Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate TermiNation finish;which are fully compliant with RoHS. HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.
