| Part number | HYG020N04NA1B |
|---|---|
| Manufacturer | HUAYI |
| File Size | 1.38 MB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG020N04NA1B Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: HYG020N04NA1B, HYG020N04NA1P. Please refer to the document for exact specifications by model. |
|
|

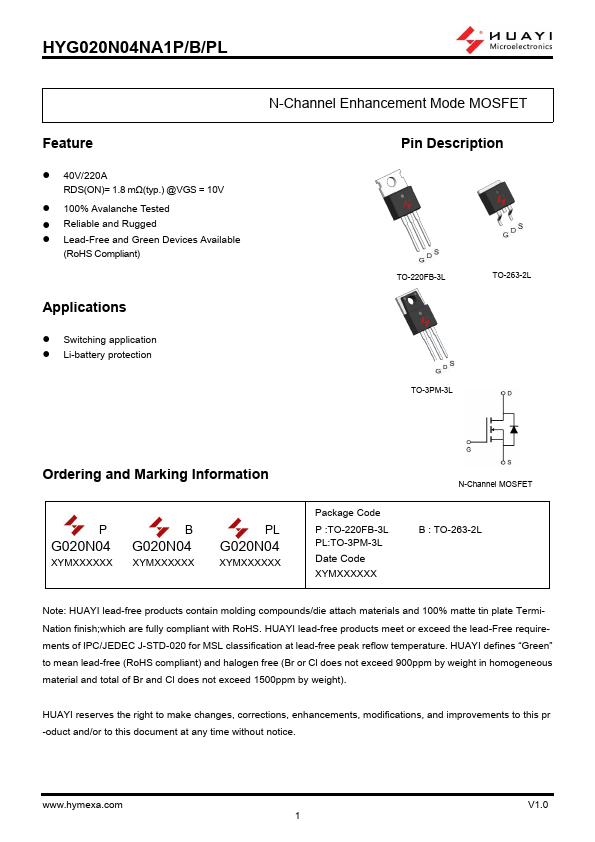

TO-220FB-3L TO-263-2L TO-3PM-3L Ordering and Marking Information P G020N04 XYMXXXXXX B G020N04 XYMXXXXXX PL G020N04 XYMXXXXXX Package Code P :TO-220FB-3L PL:TO-3PM-3L Date Code XYMXXXXXX N-Channel MOSFET B : TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate TermiNation finish;which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification
