High Resolution Optical Reflective Sensor

HBCS-1100 Features

* Focused Emitter and Detector in a Single Package

* High Resolution

* 0.190 mm Spot Size

* 700 nm Visible Emitter

* Lens Filtered to Reject Ambient Light

* TO-5 Miniature Sealed Package

* Photodiode and Transistor Output

* Solid State Re

HBCS-1100 General Description

The HBCS-1100 is a fully integrated module designed for optical reflective sensing. The module contains a 0.178 mm (0.007 in.) diameter 700 nm visible LED emitter and a matched I.C. photodetector. A bifurcated aspheric lens is used to image the active areas of the emitter and the detector to a sing.

HBCS-1100 Datasheet (182.08 KB)

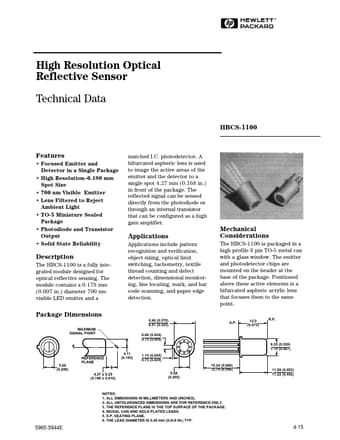

Preview of HBCS-1100 PDF
