CYStech Electronics Corp.
Dual NPN Digital Transistors
HBC114TS6R
Spec. No. : C353S6R Issued Date : 2003.05.23 Revised Date : 2011.02.22 Page No. : 1/6

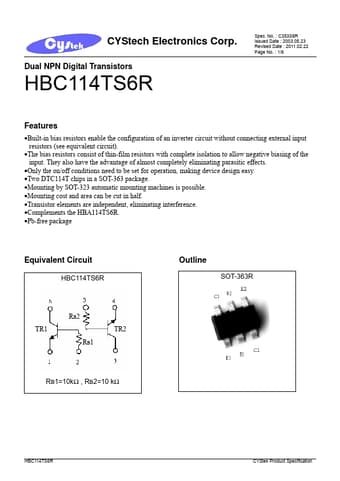

Features
•Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
•The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
•Only the on/off conditions need to be set for operation, making device design easy. •Two DTC114T chips in a SOT-363 package. •Mounting by SOT-323 automatic mounting machines is possible. •Mounting cost and area can be cut in half. •Transistor elements are independent, eliminating interference.
HBC114TS6R Datasheet
