HBC517 - NPN EPITAXIAL PLANAR TRANSISTOR

This page provides the datasheet information for the HBC517, a member of the HBC517-HI NPN EPITAXIAL PLANAR TRANSISTOR family.

Datasheet Summary

Description

General Purpose High Darlington Transistor Absolute Maximum Ratings TO-92 Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C Maximum Maximum Power Dissipation Total Power Dissipation (TA=25°C) 625 mW Maximum Voltages and Currents (

📥 Download Datasheet

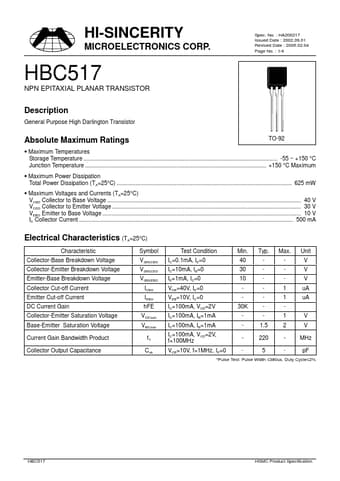

Datasheet preview – HBC517

Datasheet Details

Part number HBC517
Manufacturer HI-SINCERITY
File Size 45.96 KB
Description NPN EPITAXIAL PLANAR TRANSISTOR
Datasheet download datasheet HBC517 Datasheet
Additional preview pages of the HBC517 datasheet.

📁 Similar Datasheet

  • HBC546 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HBC547 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HBC548 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HBC556 - PNP EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HBC557 - PNP EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HBC558 - PNP EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HBC114ES6R - Dual NPN Digital Transistor (CYStech Electronics)
  • HBC114TS6R - Dual NPN Digital Transistor (CYStech Electronics)
  • HBC114YC6 - Dual NPN Digital Transistors (CYStech Electronics)
  • HBC114YS5 - Dual NPN Digital Transistors (CYStech Electronics)
Other Datasheets by HI-SINCERITY

    Full PDF Text Transcription

    Click to expand full text
    HI-SINCERITY MICROELECTRONICS CORP. HBC517 NPN EPITAXIAL PLANAR TRANSISTOR Spec. No. : HA200217 Issued Date : 2002.09.01 Revised Date : 2005.02.04 Page No. : 1/4 Description General Purpose High Darlington Transistor Absolute Maximum Ratings TO-92 • Maximum Temperatures Storage Temperature ........................................................................................................................... -55 ~ +150 °C Junction Temperature ................................................................................................................... +150 °C Maximum • Maximum Power Dissipation Total Power Dissipation (TA=25°C) ...............................................................................................................
