HBC557 - PNP EPITAXIAL PLANAR TRANSISTOR

This page provides the datasheet information for the HBC557, a member of the HBC557_Hi PNP EPITAXIAL PLANAR TRANSISTOR family.

Datasheet Summary

Description

The HBC557 is designed for use in driver stage of audio amplifier applications.

Features

  • High Breakdown Voltage: 45V.
  • High AC Current Gain: 75-800 at IC=2mA TO-92 Absolute Maximum Ratings.
  • Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C Maximum.
  • Maximum Power Dissipation Total Power Dissipation (TA=25°C) 500 mW.
  • Maximum Voltages and Currents (TA=25°C) VCBO Collector to Base Voltage.

📥 Download Datasheet

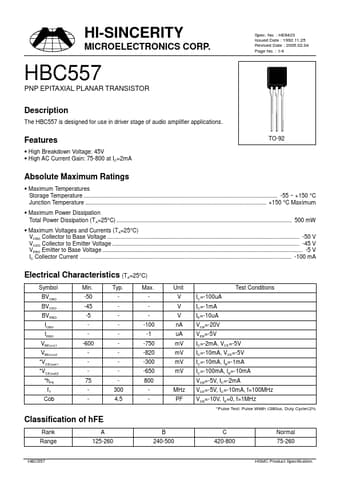

Datasheet preview – HBC557
