HBC556 - PNP EPITAXIAL PLANAR TRANSISTOR

This page provides the datasheet information for the HBC556, a member of the HBC556_Hi PNP EPITAXIAL PLANAR TRANSISTOR family.

Datasheet Summary

Description

The HBC556 is primarily intended for use in driver stage of audio amplifiers.

Features

  • High Breakdown Voltage: 65V at IC=1mA.
  • High AC Current Gain: 75-500 at IC=2mA,VCE=5V,f=1MHz TO-92 Absolute Maximum Ratings.
  • Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C Maximum.
  • Maximum Power Dissipation Total Power Dissipation (TA=25°C) 500 mW.
  • Maximum Voltages and Currents (TA=25°C) VCBO Collector to Base Voltage.

📥 Download Datasheet

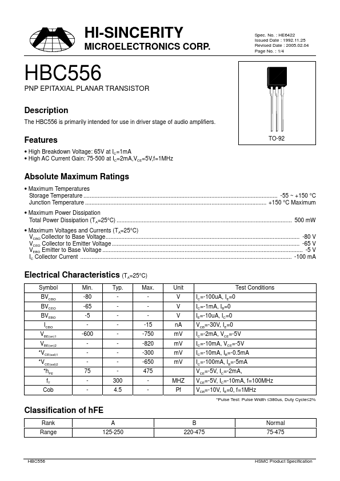

Datasheet preview – HBC556

Datasheet Details

Part number HBC556
Manufacturer Hi-Sincerity Mocroelectronics
File Size 47.06 KB
Description PNP EPITAXIAL PLANAR TRANSISTOR
Datasheet download datasheet HBC556 Datasheet
