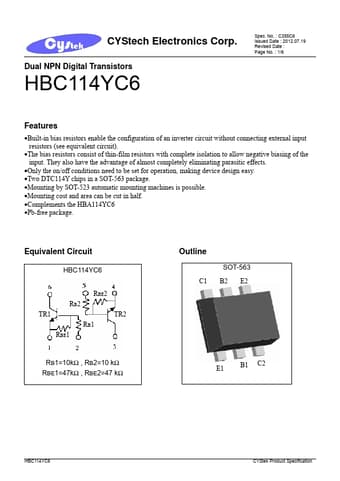

CYStech Electronics Corp.
Dual NPN Digital Transistors
Spec. No. : C355C6 Issued Date : 2012.07.19 Revised Date : Page No. : 1/6
HBC114YC6
Features
•Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). •The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. •Only the on/off conditions need to be set for operation, making device design easy. •Two DTC114Y chips in a SOT-563 package. •Mounting by SOT-523 automatic mounting machines is possible. •Mounting cost and area can be cut in half. •Complements the HBA114YC6 •Pb-free package.
