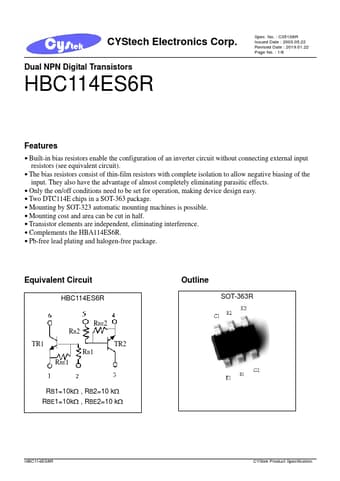

CYStech Electronics Corp.
Dual NPN Digital Transistors
HBC114ES6R
Spec. No. : C351S6R Issued Date : 2003.05.22 Revised Date : 2019.01.22 Page No. : 1/6
Features
Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy. Two DTC114E chips in a SOT-363 package. Mounting by SOT-323 automatic mounting machines is possible. Mounting cost and area can be cut in half.
