HBC124ES6R - Dual NPN Digital Transistors

CYStech Electronics

📥 Download Datasheet

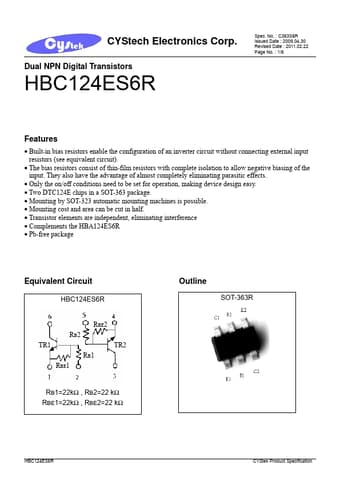

HBC124ES6R Datasheet Preview — Preview of HBC124ES6R PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HBC124ES6R
Manufacturer: CYStech Electronics
File Size: 299.57 KB
Datasheet: HBC124ES6R-CYStechElectronics.pdf
Description: Dual NPN Digital Transistors

HBC124ES6R Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
Two DTC124E chips in a SOT-363 package.
