CS13J65FA9

Silicon N-Channel Power MOSFET

CS13J65FA9 Features

* l Fast Switching l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy Test Applications: Power switch circuit of adaptor and charger. Absolute(Tc= 25℃ unless otherwise specified): 650 V 13 A 34.5 W 0.42 Ω Symbol Parameter VDSS ID IDMa1 VGS EAS a2 dv/dta3 PD

CS13J65FA9 General Description

CS13J65F A9, the silicon N-channel Enhanced MOSFETs, is obtained by the super junction technology which reduces the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher ef.

CS13J65FA9 Datasheet (413.45 KB)

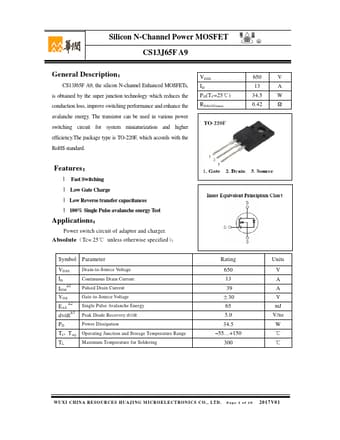

Preview of CS13J65FA9 PDF

Datasheet Details

Part number:

CS13J65FA9

Manufacturer:

HUAJING MICROELECTRONICS

File Size:

413.45 KB

Description:

Silicon n-channel power mosfet.
