HYG015N03LS1C2 Datasheet - HUAYI

HYG015N03LS1C2 N-Channel Enhancement Mode MOSFET

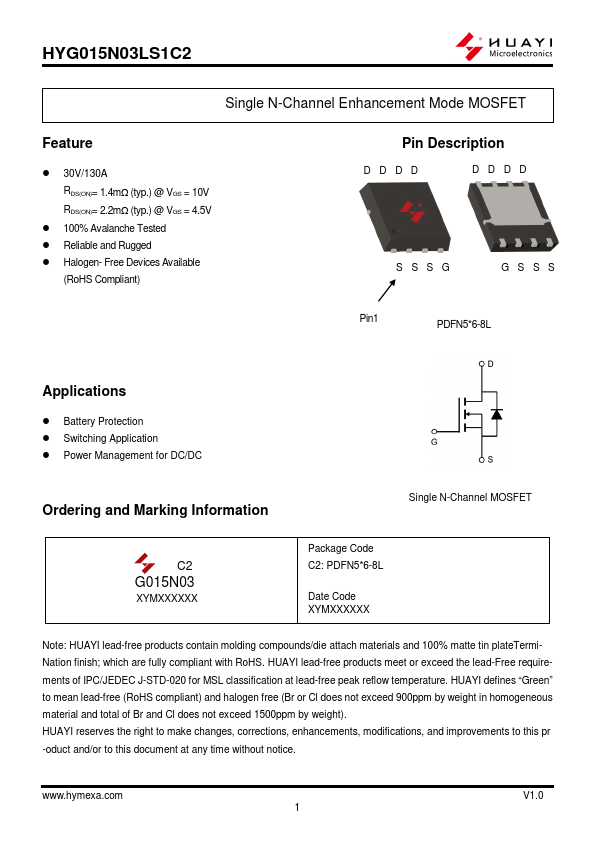

DDDD DDDD SSSG GSSS Pin1 PDFN5 *6-8L Applications * Battery Protection * Switching Application * Power Management for DC/DC Ordering and Marking Information Single N-Channel MOSFET C2 G015N03 XYMXXXXXX Package Code C2: PDFN5 *6-8L Date Code XYMXXXXXX Note: HUAYI lead-fr.

HYG015N03LS1C2-HUAYI.pdf

Preview of HYG015N03LS1C2 PDF

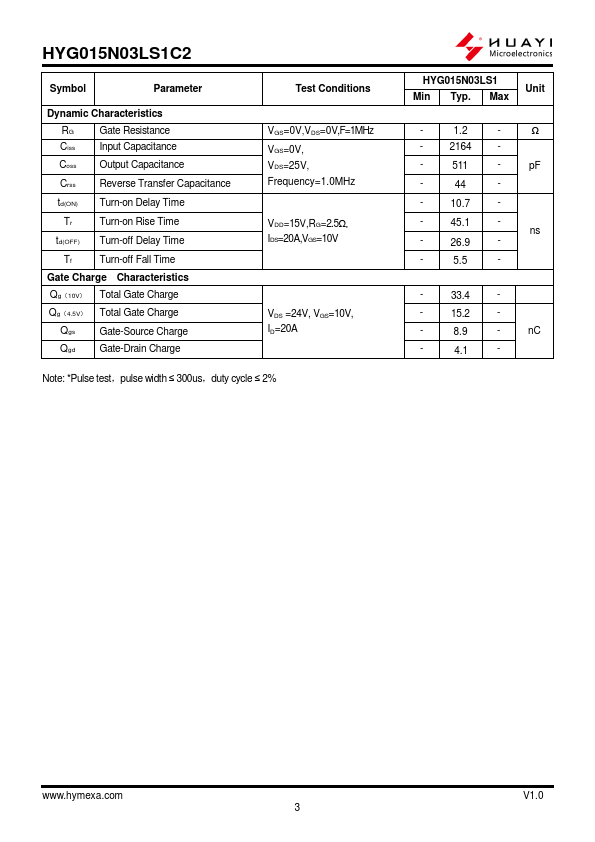

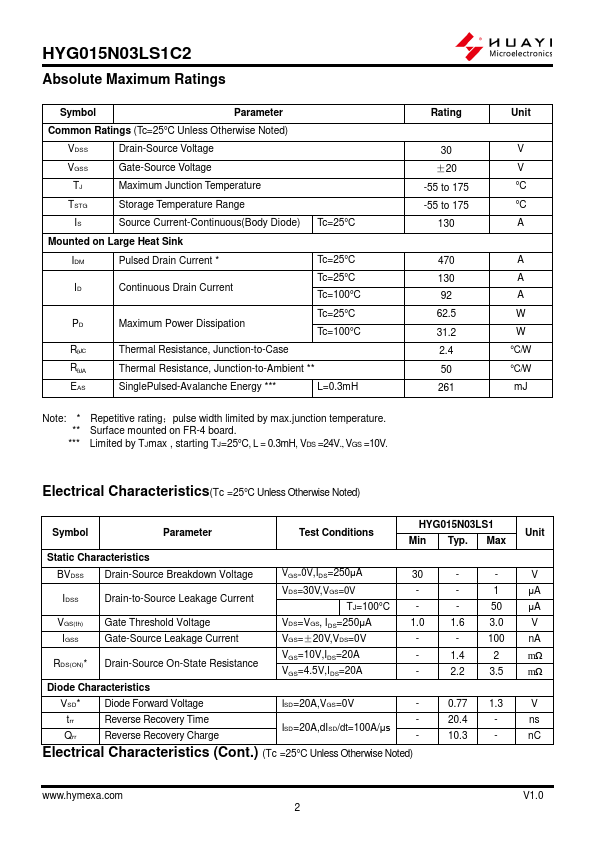

HYG015N03LS1C2 Datasheet Preview Page 2 HYG015N03LS1C2 Datasheet Preview Page 3

Datasheet Details

Part number:

HYG015N03LS1C2

Manufacturer:

HUAYI

File Size:

815.33 KB

Description:

N-channel enhancement mode mosfet.
