HYG190P13NA1B, HYG190P13NA1P Datasheet - HUAYI

HYG190P13NA1B P-Channel Enhancement Mode MOSFET

TO-220FB-3L TO-263-2L Applications * Portable equipment and battery powered systems Ordering and Marking Information P G190P13 XYMXXXXXX B G190P13 XYMXXXXXX P-Channel MOSFET Package Code P: TO-220FB-3L Date Code XYMXXXXXX B: TO-263-2L Note: HUAYI lead-free products contain molding compou.

HYG190P13NA1P-HUAYI.pdf

This datasheet PDF includes multiple part numbers: HYG190P13NA1B, HYG190P13NA1P. Please refer to the document for exact specifications by model.

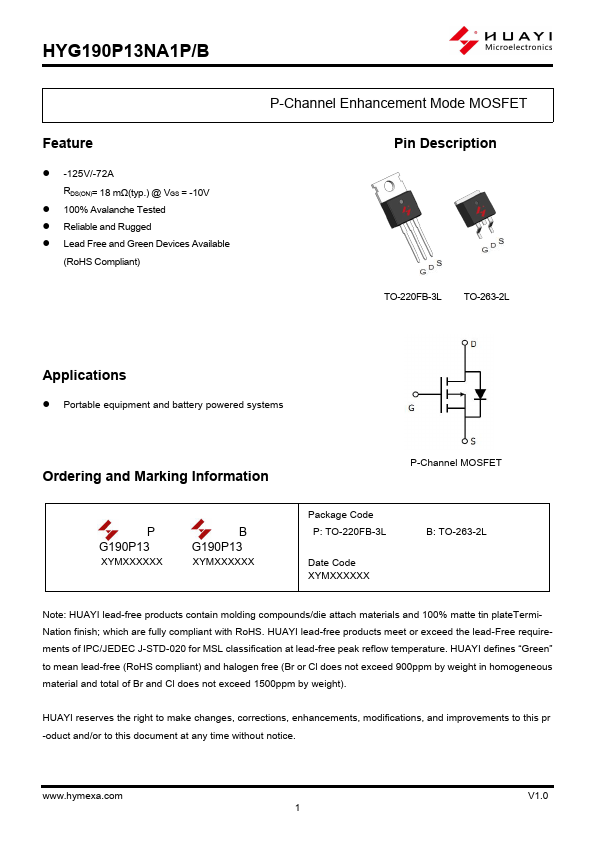

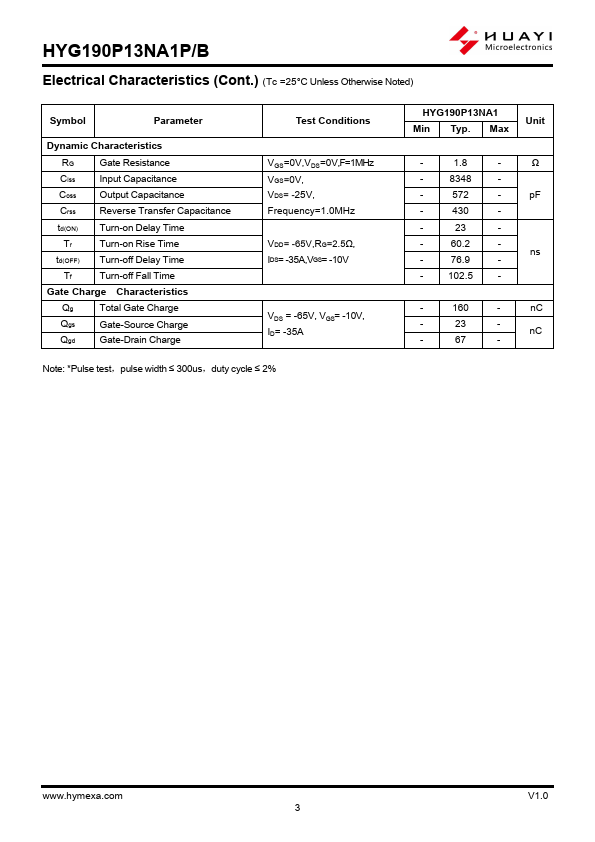

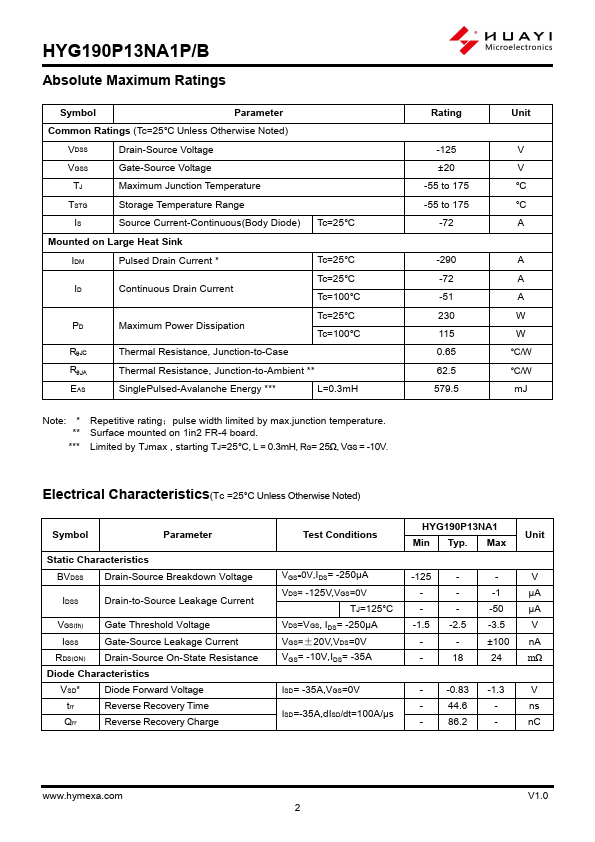

HYG190P13NA1B Datasheet Preview Page 2 HYG190P13NA1B Datasheet Preview Page 3

Datasheet Details

Part number:

HYG190P13NA1B, HYG190P13NA1P

Manufacturer:

HUAYI

File Size:

1.40 MB

Description:

P-channel enhancement mode mosfet.

Note:

This datasheet PDF includes multiple part numbers: HYG190P13NA1B, HYG190P13NA1P.
Please refer to the document for exact specifications by model.
