HYG190P13NA1P P-Channel Enhancement Mode MOSFET

HUAYI

Description

HYG190P13NA1P/B .
TO-220FB-3L TO-263-2L Applications. Portable equipment and battery powered systems Ordering and Marking Information P G190P13 XYMXXXXXX B G19.

📥 Download Datasheet

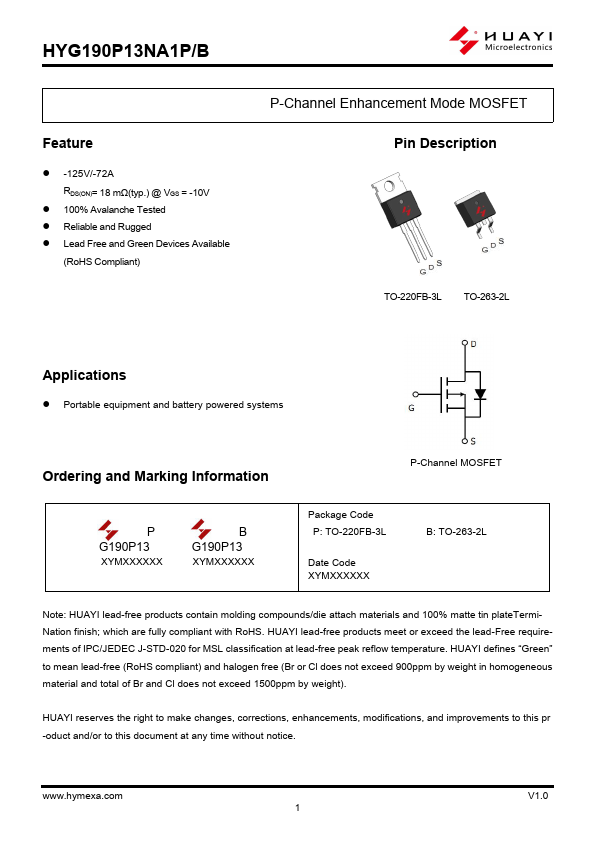

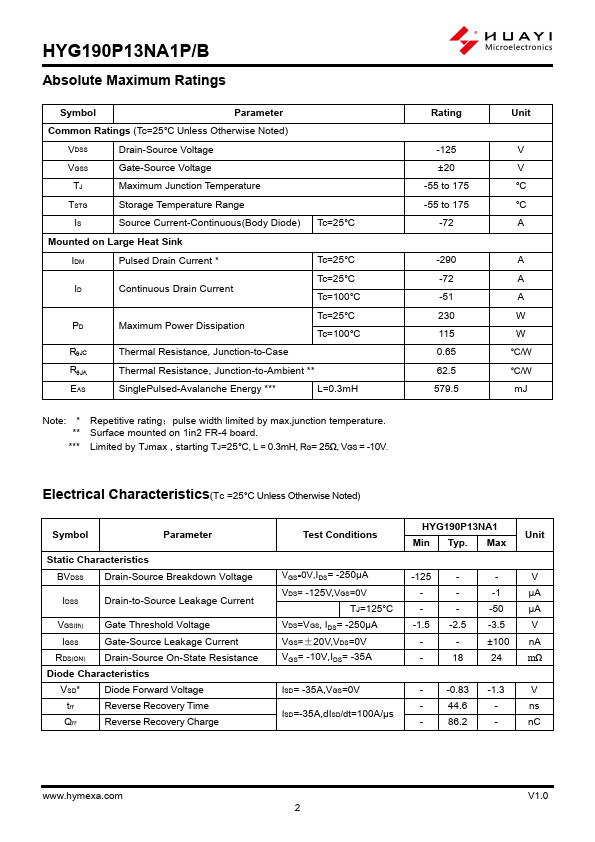

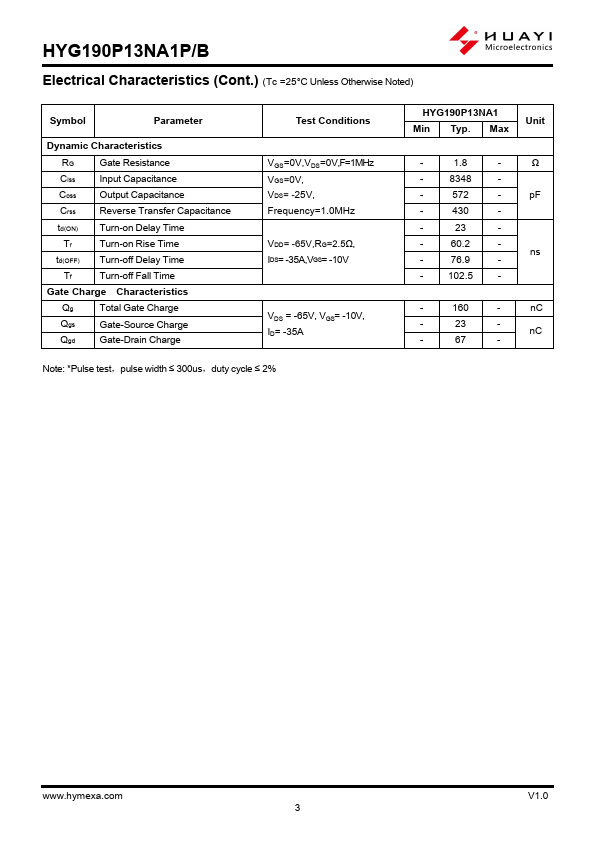

HYG190P13NA1P Datasheet Preview — Preview of HYG190P13NA1P PDF

Datasheet Specifications

Part number: HYG190P13NA1P
Manufacturer: HUAYI
File Size: 1.40 MB
Datasheet: HYG190P13NA1P-HUAYI.pdf
Description: P-Channel Enhancement Mode MOSFET

Applications

* Portable equipment and battery powered systems Ordering and Marking Information P G190P13 XYMXXXXXX B G190P13 XYMXXXXXX P-Channel MOSFET Package Code P: TO-220FB-3L Date Code XYMXXXXXX B: TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% ma
