HDD128M72D18RPW

DDR SDRAM Module 1024Mbyte

HDD128M72D18RPW Features

* Part Identification HDD128M72D18RPW

* 13A HDD128M72D18RPW

* 13B HDD128M72D18RPW

* 16B : : : 133MHz (CL=2) 133MHz (CL=2.5) 166MHz (CL=2.5)

* 1024MB(64Mx72) Registered DDR DIMM based on 64Mx8 DDR SDRAM

* 2.5V ± 0.2V VDD and VDDQ power supply

HDD128M72D18RPW General Description

The HDD128M72D18RPW is a 128M x 72 bit Double Data Rate(DDR) Synchronous Dynamic RAM high-density memory module. The module consists of eighteen CMOS 64M x 8 bit with 4banks DDR SDRAMs in 66pin TSOP-II 400mil packages and 2K EEPROM in 8-pin TSSOP package on a 184-pin glass-epoxy. Four 0.1uF decoupli.

HDD128M72D18RPW Datasheet (473.48 KB)

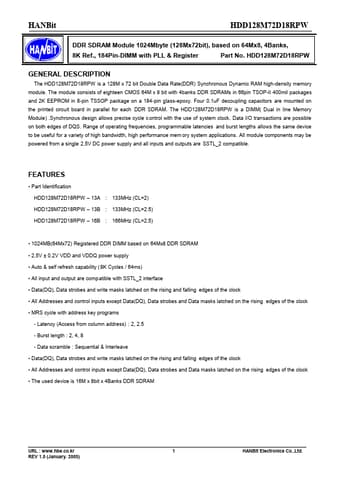

Preview of HDD128M72D18RPW PDF

Datasheet Details

Part number:

HDD128M72D18RPW

Manufacturer:

Hanbit Electronics

File Size:

473.48 KB

Description:

Ddr sdram module 1024mbyte.
HANBit HDD128M72D18RPW DDR SDRAM Module 1024Mbyte (128Mx72bit), based on 64Mx8, 4Banks, 8K Ref., 184Pin-DIMM with PLL & Register Part No. HDD128M72D1.
