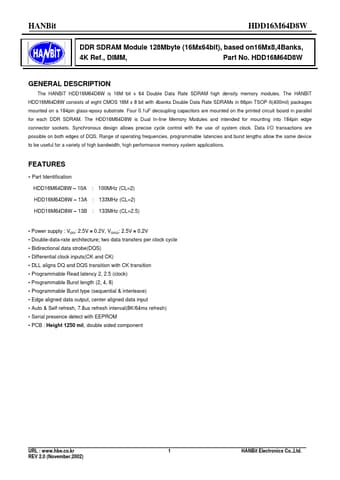

HDD16M64D8W DDR SDRAM Module 128Mbyte

The HANBiT HDD16M64D8W is 16M bit x 64 Double Data Rate SDRAM high density memory modules. The HANBiT HDD16M64D8W consists of eight CMOS 16M x 8 bit with 4banks Double Data Rate SDRAMs in 66pin TSOP-II(400mil) packages mounted on a 184pin glass-epoxy substrate. Four 0.1uF decoupling capacitors are m.

HDD16M64D8W Features

* Part Identification HDD16M64D8W

* 10A HDD16M64D8W

* 13A HDD16M64D8W

* 13B : 100MHz (CL=2) : 133MHz (CL=2) : 133MHz (CL=2.5)

* Power supply : VDD: 2.5V ± 0.2V, VDDQ: 2.5V ± 0.2V

* Double-data-rate architecture; two data transfers per clock cycle
