HDD16M64B8

DDR SDRAM Module 128Mbyte

HDD16M64B8 Features

* Part Identification HDD16M64B8

* 10A : HDD16M64B8

* 13A : HDD16M64B8

* 13B : 100MHz (CL=2) 133MHz (CL=2) 133MHz (CL=2.5)

* 128MB(16Mx64) Unbuffered DDR SO-DIMM based on 16Mx8 DDR SDRSM

* 2.5V ± 0.2V VDD and VDDQ power supply

* Auto & self re

HDD16M64B8 General Description

The HDD16M64B8 is a 16M x 64 bit Double Data Rate(DDR) Synchronous Dynamic RAM high-density memory module. The module consists of eight CMOS 16M x 8 bit with 4banks DDR SDRAMs in 66pin TSOP-II 400mil packages and 2K EEPROM in 8-pin TSSOP package on a 200-pin glass-epoxy. Four 0.1uF decoupling capaci.

HDD16M64B8 Datasheet (185.63 KB)

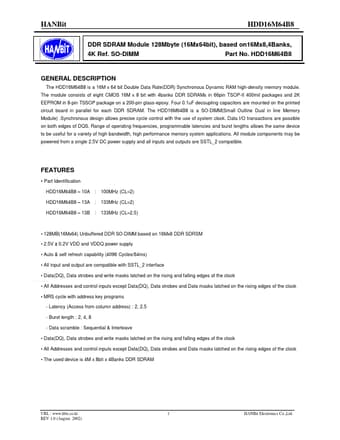

Preview of HDD16M64B8 PDF

Datasheet Details

Part number:

HDD16M64B8

Manufacturer:

Hanbit Electronics

File Size:

185.63 KB

Description:

Ddr sdram module 128mbyte.
