HDD16M64F8 DDR SDRAM Module 128Mbyte

The HDD16M64F8 is a 32M x 64 bit Double Data Rate(DDR) Synchronous Dynamic RAM high-density memory module. The module consists of eight CMOS 16M x 8 bit with 4banks DDR SDRAMs in 66pin TSOP-II 400mil packages and 2K EEPROM in 8-pin TSSOP package on a 200-pin glass-epoxy. Four 0.1uF decoupling capaci.

HDD16M64F8 Features

* Part Identification HDD16M64F8

* 10A : HDD16M64F8

* 13A : HDD16M64F8

* 13B : 100MHz (CL=2) 133MHz (CL=2) 133MHz (CL=2.5)

* 128MB(16Mx64) Unbuffered DDR SMM based on 16Mx8 DDR SDRSM

* 2.5V ± 0.2V VDD and VDDQ power supply

* Auto & self refres

HDD16M64F8_HanbitElectronics.pdf

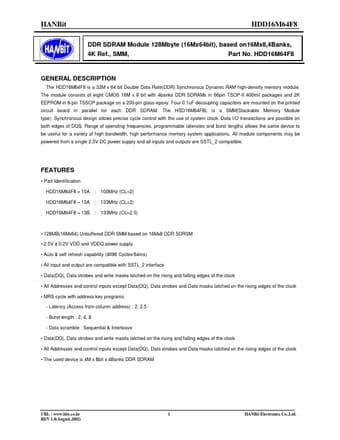

HDD16M64F8 Datasheet Preview — Preview of HDD16M64F8 PDF

Datasheet Details

Part number:

HDD16M64F8

Manufacturer:

Hanbit Electronics

File Size:

160.38 KB

Description:

Ddr sdram module 128mbyte.
