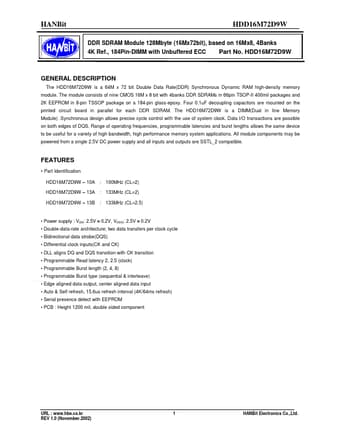

HDD16M72D9W DDR SDRAM Module 128Mbyte

The HDD16M72D9W is a 64M x 72 bit Double Data Rate(DDR) Synchronous Dynamic RAM high-density memory module. The module consists of nine CMOS 16M x 8 bit with 4banks DDR SDRAMs in 66pin TSOP-II 400mil packages and 2K EEPROM in 8-pin TSSOP package on a 184-pin glass-epoxy. Four 0.1uF decoupling capaci.

HDD16M72D9W Features

* Part Identification HDD16M72D9W

* 10A : HDD16M72D9W

* 13A : HDD16M72D9W

* 13B : 100MHz (CL=2) 133MHz (CL=2) 133MHz (CL=2.5)

* Power supply : VDD: 2.5V ± 0.2V, VDDQ: 2.5V ± 0.2V

* Double-data-rate architecture; two data transfers per clock cycle
