HFDOM40KVxxx - 40Pin Flash Disk Module

Hanbit Electronics

📥 Download Datasheet

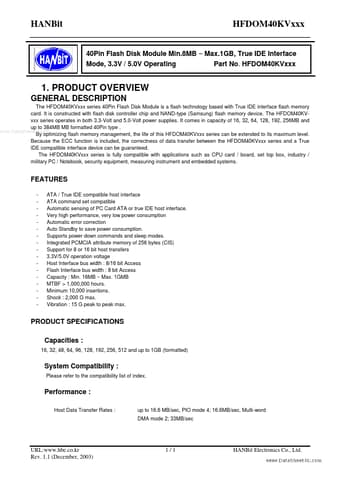

HFDOM40KVxxx Datasheet Preview — Preview of HFDOM40KVxxx PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HFDOM40KVxxx
Manufacturer	Hanbit Electronics
File Size	193.43 KB
Description	40Pin Flash Disk Module
Datasheet	HFDOM40KVxxx_HanbitElectronics.pdf

HFDOM40KVxxx Product details

Description

The HFDOM40KVxxx series 40Pin Flash Disk Module is a flash technology based with True IDE interface flash memory card.

Features

ATA / True IDE compatible host interface ATA command set compatible Automatic sensing of PC Card ATA or true IDE host interface. Very high performance, very low power consumption Automatic error correction Auto Standby to save power consumption. Supports power down commands and sleep modes. Integrated PCMCIA attribute memory of 256 bytes (CIS) Support for 8 or 16 bit host transfers 3.3V/5.0V operation voltage Host Interface bus width : 8/16 bit Access Flash Interface bus width : 8 bit Access Cap.
