ADC-0804, ADC0804 A/D Converters

ADC-0804 Description

www.DataSheet4U.com Semiconductor ADC0802, ADC0803 ADC0804 8-Bit, MicroprocessorCompatible, A/D Converters .
The ADC0802 family are CMOS 8-Bit, successive-approximation A/D converters which use a modified potentiometric ladder and are designed to operate with.

ADC-0804 Features

* 80C48 and 80C80/85 Bus Compatible - No Interfacing Logic Required
* Conversion Time < 100µs
* Easy Interface to Most Microprocessors
* Will Operate in a “Stand Alone” Mode
* Differential Analog Voltage Inputs
* Works with Bandgap Voltage References

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADC-0804, ADC0804. Please refer to the document for exact specifications by model.

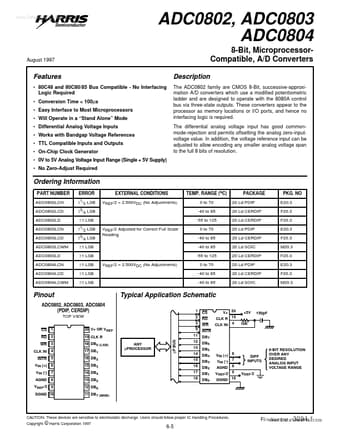

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADC-0804, ADC0804
Manufacturer
Harris
File Size
331.03 KB
Datasheet
ADC0804_Harris.pdf
Description
A/D Converters
Note
This datasheet PDF includes multiple part numbers: ADC-0804, ADC0804.
Please refer to the document for exact specifications by model.
