HJ1109, HJ1109_Hi Datasheet - Hi-Sincerity Mocroelectronics

HJ1109 PNP EPITAXIAL PLANAR TRANSISTOR

* Low frequency high voltage amplifier. * Complementary pair with HJ1609. Absolute Maximum Ratings (Ta=25°C) * Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C * Maximum Power Dissipation Total Power Dissipation (Ta=25°C) 1.25 W .

HJ1109_Hi-SincerityMocroelectronics.pdf

This datasheet PDF includes multiple part numbers: HJ1109, HJ1109_Hi. Please refer to the document for exact specifications by model.

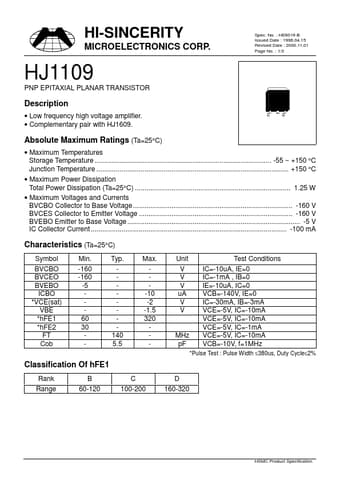

HJ1109 Datasheet Preview Page 2 HJ1109 Datasheet Preview Page 3

Datasheet Details

Part number:

HJ1109, HJ1109_Hi

Manufacturer:

Hi-Sincerity Mocroelectronics

File Size:

31.23 KB

Description:

Pnp epitaxial planar transistor.

Note:

This datasheet PDF includes multiple part numbers: HJ1109, HJ1109_Hi.
Please refer to the document for exact specifications by model.
