HJ122, HJ122_Hi, NPN EPITAXIAL PLANAR TRANSISTOR

HI-SINCERITY MICROELECTRONICS CORP.HJ122 NPN EPITAXIAL PLANAR TRANSISTOR Spec.No.: HE6009 Issued Date : 1996.02.03 Revised Date :2008.04.09 Page N.
TO-252 The HJ122 is designed for use in general purposes and low speed switching applications. High DC c.

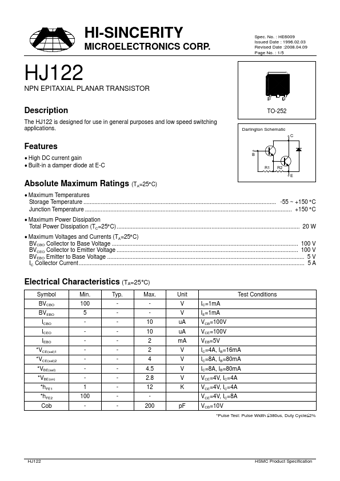

datasheet Preview Page 1 from Datasheet4u.com

HJ122_Hi-SincerityMocroelectronics.pdf

HJ122 Datasheet Preview — This datasheet PDF includes multiple part numbers: HJ122, HJ122_Hi. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HJ122, HJ122_Hi

Manufacturer:

Hi-Sincerity Mocroelectronics

File Size:

95.62 KB

Description:

NPN EPITAXIAL PLANAR TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: HJ122, HJ122_Hi.
Please refer to the document for exact specifications by model.

Features

* High DC current gain
* Built-in a damper diode at E-C Absolute Maximum Ratings (TA=25°C) B R1 R2 E
* Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C
* Maximum Power Dissipation Total Power Dissipation (TC=25°C) 20 W
