2SC2611 Silicon NPN Transistor

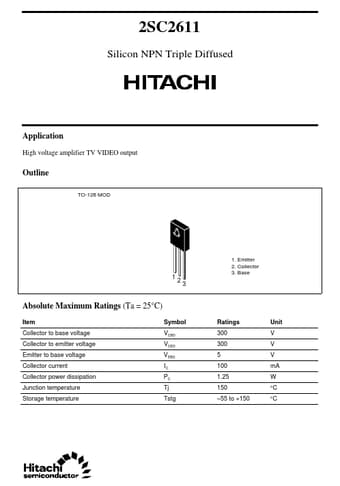

2SC2611 Silicon NPN Triple Diffused Application High voltage amplifier TV VIDEO output Outline TO-126 MOD 1 1. Emitter 2. Collector 3. Base 2 3 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 300 300 5 100 1.25 150 55 to +150 Unit V V V mA W °C °C 2SC2611 Electrical Characterist.
