2SC5773 - NPN TRANSISTOR

Product Overview

Hitachi Semiconductor

Part number	2SC5773
Manufacturer	Hitachi Semiconductor
File Size	91.09 KB
Description	NPN TRANSISTOR
Datasheet	2SC5773 Datasheet

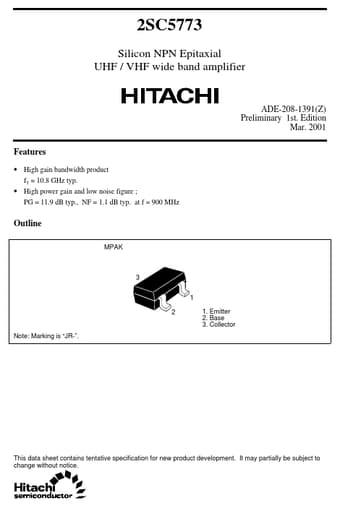

Additional preview pages of the 2SC5773 datasheet.

High gain bandwidth product fT = 10.8 GHz typ.
High power gain and low noise figure ; PG = 11.9 dB typ. , NF = 1.1 dB typ. at f = 900 MHz Outline MPAK 3 1 2 1. Emitter 2. Base 3. Collector Note: Marking is “JR-”. This data sheet contains tentative specification for new product development. It may partially be subject to change without notice. 2SC5773 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Co.
