* Ideal for low noise high-gain amplification and oscillation at 3 GHz or over NF = 1.1 dB TYP. @ VCE = 2 V, IC = 5 mA, f = 2 GHz
* High fT: fT = 25.0 GHz TYP. @ VCE = 3 V, IC = 30 mA, f = 2 GHz
* 6-pin lead-less minimold package ORDERING INFORMATION Part Number NE662M16-
2SC5704
CEL
700.05 KB
Npn silicon rf transistor.
DISCONTINUED

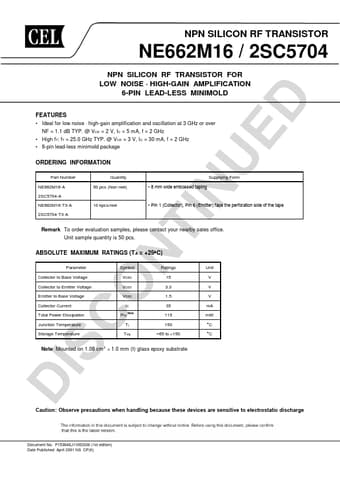

NPN SILICON RF TRANSISTOR
NE662M16 / 2SC5704
NPN SILICON RF TRANSISTOR FOR LOW NOISE HIGH-GAIN AMPLIFICATION
6-PIN LEAD-LESS MINIMOLD
.
