2SC5704-A, 2SC5704, NPN SILICON RF TRANSISTOR

DISCONTINUED NPN SILICON RF TRANSISTOR NE662M16 / 2SC5704 NPN SILICON RF TRANSISTOR FOR LOW NOISE  HIGH-GAIN AMPLIFICATION 6-PIN LEAD-LESS MINIMOLD .

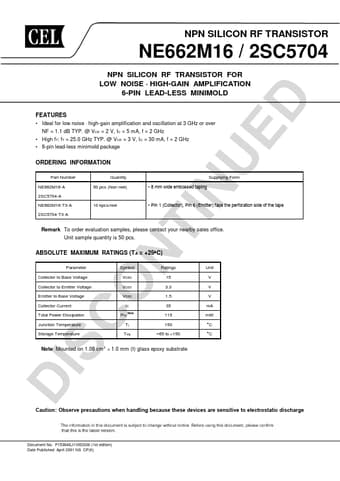

datasheet Preview Page 1 from Datasheet4u.com

2SC5704-CEL.pdf

2SC5704-A Datasheet Preview — This datasheet PDF includes multiple part numbers: 2SC5704-A, 2SC5704. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2SC5704-A, 2SC5704

Manufacturer:

CEL

File Size:

700.05 KB

Description:

NPN SILICON RF TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: 2SC5704-A, 2SC5704.
Please refer to the document for exact specifications by model.

Features

* Ideal for low noise  high-gain amplification and oscillation at 3 GHz or over NF = 1.1 dB TYP. @ VCE = 2 V, IC = 5 mA, f = 2 GHz
* High fT: fT = 25.0 GHz TYP. @ VCE = 3 V, IC = 30 mA, f = 2 GHz
* 6-pin lead-less minimold package ORDERING INFORMATION Part Number NE662M16-

2SC5704-A Distributors
