2SC5754

NPN SILICON RF TRANSISTOR

CEL

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	California Eastern Laboratories (CEL)	2SC5754	2SC5754-A	RF TRANS NPN 5V 20GHZ	DigiKey	0	0	$0	🛒 Buy Now

📥 Download PDF (2.07 MB)

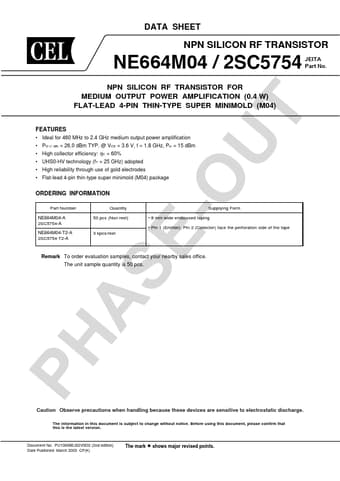

2SC5754 Datasheet Preview Page 1 — Preview of 2SC5754 Datasheet

Datasheet Details

Part number:

2SC5754

Manufacturer:

CEL

File Size:

2.07 MB

Download:

📄 Download 2SC5754 Datasheet PDF

Description:

Npn silicon rf transistor.
PHASE-OUT DATA SHEET NPN SILICON RF TRANSISTOR NE664M04 / 2SC5754 JEITA Part No. NPN SILICON .
RF TRANSISTOR FOR MEDIUM OUTPUT POWER AMPLIFICATION (0.4 W) FLAT-LEAD 4-PIN THIN-TYPE SUPER MINIMOLD.

✔ 2SC5754 Features

Ideal for 460 MHz to 2.4 GHz medium output power amplification
PO (1 dB) = 26.0 dBm TYP. @ VCE = 3.6 V, f = 1.8 GHz, Pin = 15 dBm
High collector efficiency: ηC = 60
