2SC5704-T3-A, 2SC5704 - NPN SILICON RF TRANSISTOR

2SC5704-T3-A Description

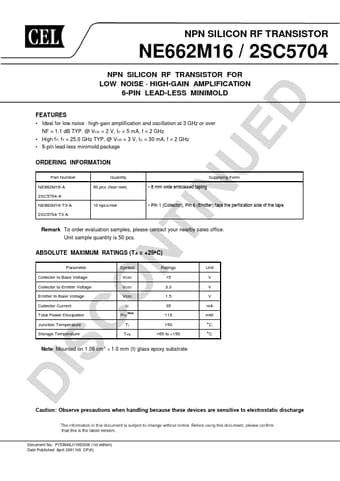

DISCONTINUED NPN SILICON RF TRANSISTOR NE662M16 / 2SC5704 NPN SILICON RF TRANSISTOR FOR LOW NOISE  HIGH-GAIN AMPLIFICATION 6-PIN LEAD-LESS MINIMOLD .

2SC5704-T3-A Features

* Ideal for low noise  high-gain amplification and oscillation at 3 GHz or over NF = 1.1 dB TYP. @ VCE = 2 V, IC = 5 mA, f = 2 GHz
* High fT: fT = 25.0 GHz TYP. @ VCE = 3 V, IC = 30 mA, f = 2 GHz
* 6-pin lead-less minimold package ORDERING INFORMATION Part Number NE662M16-

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SC5704-T3-A, 2SC5704. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC5704-T3-A, 2SC5704
Manufacturer
CEL
File Size
700.05 KB
Datasheet
2SC5704-CEL.pdf
Description
NPN SILICON RF TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: 2SC5704-T3-A, 2SC5704.
Please refer to the document for exact specifications by model.
