2SC5709 - NPN TRANSISTOR

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

2SC5709 NPN TRANSISTOR by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – 2SC5709

Datasheet Details

Part number	2SC5709
Manufacturer	Sanyo Semicon Device
File Size	37.37 KB
Description	NPN TRANSISTOR
Datasheet	2SC5709 Datasheet
Additional preview pages of the 2SC5709 datasheet.

Product details

Features

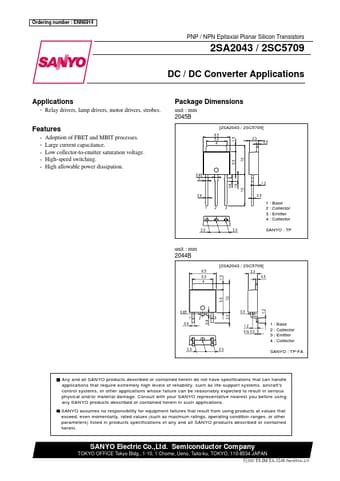

Adoption of FBET and MBIT processes. Large current capacitance. Low collector-to-emitter saturation voltage. High-speed switching. High allowable power dissipation. 0.85 0.7 1.5 2.3 0.5 5.5 7.0 0.8 1.6 1.2 0.6 7.5 0.5 1 2 3 1 : Base 2 : Collector 3 : Emitter 4 : Collector 2.3 2.3 SANYO : TP unit : mm 2044B [2SA2043 / 2SC5709] 6.5 5.0 4 2.3 1.5 0.5 5.5 7.0 0.85 0.5 0.8 1 0.6 2 3 2.5 1.2 1.2 0 to 0.2 1 : Base 2 : Colle.
