2SC5764 - NPN TRANSISTOR

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

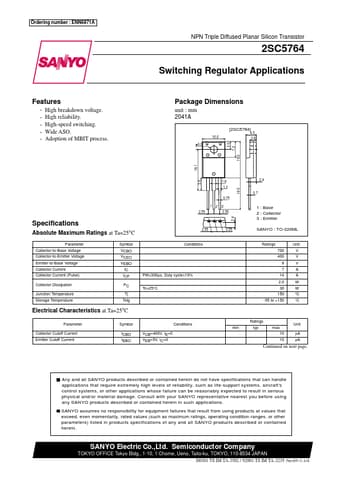

2SC5764 NPN TRANSISTOR by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – 2SC5764

Datasheet Details

Part number	2SC5764
Manufacturer	Sanyo Semicon Device
File Size	31.32 KB
Description	NPN TRANSISTOR
Datasheet	2SC5764 Datasheet
Additional preview pages of the 2SC5764 datasheet.

Product details

Features

Package Dimensions unit : mm 2041A [2SC5764] 10.0 3.2 3.5 7.2 4.5 2.8 High breakdown voltage. High reliability. High-speed switching. Wide ASO. Adoption of MBIT process. 18.1 16.0 5.6 14.0 1.6 1.2 0.75 1 2 3 2.55 2.4 2.4 0.7 2.55 Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junc.
