2SC5763 - NPN TRANSISTOR

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

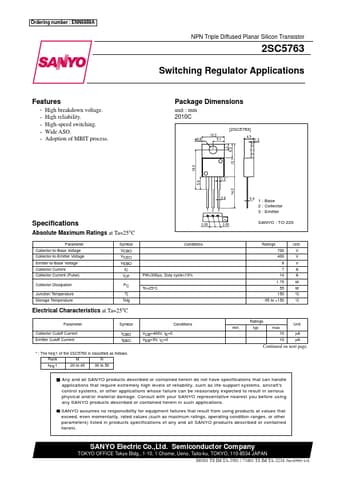

2SC5763 NPN TRANSISTOR by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – 2SC5763

Datasheet Details

Part number	2SC5763
Manufacturer	Sanyo Semicon Device
File Size	33.55 KB
Description	NPN TRANSISTOR
Datasheet	2SC5763 Datasheet
Additional preview pages of the 2SC5763 datasheet.

Product details

Features

Package Dimensions unit : mm 2010C [2SC5763] 10.2 3.6 5.1 2.7 6.3 High breakdown voltage. High reliability. High-speed switching. Wide ASO. Adoption of MBIT process. 4.5 1.3 18.0 5.6 1.2 14.0 0.8 1 2 3 2.7 15.1 0.4 1 : Base 2 : Collector 3 : Emitter 2.55 Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse).
